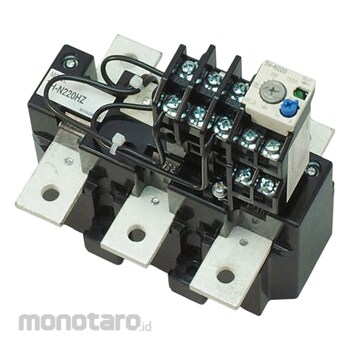

Mitsubishi Electric Thermal Relay TH-N Series
#Grup produk P112485672
Spesifikasi
| Ambient Temperature (°C) | -10 to 40 (standard temperature is 20, maximum temperature inside the panel is 55) |
|---|---|
| Applicable Frequency (Hz) | 50 to 60 |
| Applicable wire size | Operation circuit: Φ1.6, 1.25~2mm² |
| Auxiliary Contact | 1a1b |
| Frame | N220 |
| Function | Trip free, operation indication (lever indication), manual trip check |
| Heater Nominal (A) | 180 |
| Length (mm) | 104 |
| Mass (kg) | 1.5 |
| Minimum Applicable Load | 20V 5mA |
| Open thermal Current (A) | 5 |
| Power Consumption (VA) | When settling: min/1 max/2.3 |
| Rated Impulse Withstand Voltage (kV) | 6 |
| Rated Insulation Voltage (V) | 690 |
| Screw Size | Main circuit terminal: M10, auxiliary terminal: M4 |
| Size | Crimp terminal: Main circuit/22-10 to 150-10, Operation circuit/1.25-4 to 2-4, 5.5-S4 |
| Specification | ●For single installation●Damage level: 3●Frame of electromagnetic contactor to be combined: N180, N220 |
| Standard | JIS C8201-4-1, IEC60947-4-1, EN IEC60947-4-1, BS EN60947-4-1, DIN EN60947-4-1(VDE0660-102) |
| Suitable For | MSO-N180, MSO-N220, can be installed alone |
| Thickness (mm) | 166.5 |
| Type | Standard (with 2 elements) |
| Type of Resetting | Manual/automatic switching possible |
| Vibration Resistance | 10 to 55Hz 19.6m/s² |
| Width (mm) | 144 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
[Applicable to motor protection] Applicable to standard motor overload and binding protection. [Easy to set current value] You can directly set the motor current value. +- Please adjust with any driver. [Change of reset method] Easy to change between manual reset and automatic reset. [With 1a1b contacts] A and B contacts can be used with different voltages.Ulasan Produk
