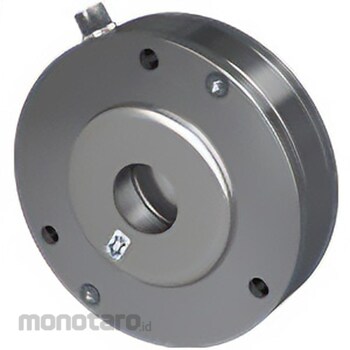

Mitsubishi Electric Tension detector
#Grup produk P112485575
Spesifikasi
| Atmosphere | No corrosive or flammable gases or conductive dust, and not too dusty |
|---|---|
| Detection Accuracy | Temperature drift: 1%/FS or less/20°C, Linearity: ±1% or less, Hysteresis: 0.5% or less |
| Included Bearing | Self-aligning ball bearings |
| Input Power (V) | DC5, 20 mA or less (Brown: DC5 V, Black: GND) |
| Insulation Resistance (MΩ) | DC500 V 100 or more using an insulation resistance tester...measured between all terminals and the housing |
| Load Direction | Compression (+), tension (-) |
| Mass (kg) | 1.2 |
| Maximum Capacity (kg) | 200% of rated load |
| Noise Immunity | Power supply: Noise voltage 1000Vp-p pulse width 1μs frequency 30 to 100Hz noise simulator |
| Operating Humidity Range (%RH) | 85 or less (no condensation) |
| Operating Temperature Range (°C) | -5 to 60 (no freezing) |
| Outer Dimensions (mm) | Outer diameter Φ105 x width 34.4 |
| Output voltage (V) | DC150±30m (when connected to a load resistance of 10kΩ) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shock Resistance (m/s²) | 98 or less...3 times each in 3 axis directions |
| Storage Humidity Range (%RH) | 85 or less (no condensation) |
| Storage Temperature Range (°C) | -5 to 60 (no freezing) |
| Suitable Shaft Diameter (Φmm) | 17 (with bearing inserted) |
| Surface Treatment | Exterior parts: Electroless nickel plating |
| Type of Sign | Wall mounting |
| Vibration Resistance (m/s²) | 2 or less |
| Withstand Voltage (V/minute) | AC1000: Measured between all terminals and the housing |
| polarity | Output voltage polarity under compressive load: Blue +, White -, Under tension load: Blue -, White + |
