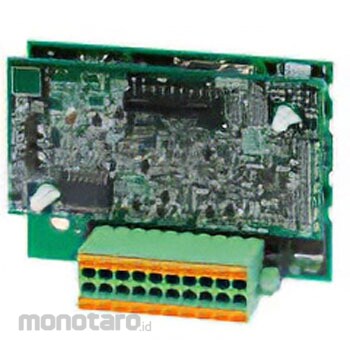

Mitsubishi Electric Reel diameter calculation option (for LE7-40GU-L)
#Grup produk P112483957
Spesifikasi
| Diameter (φmm) | Reel diameter: D=0 to 2000 |
|---|---|
| Frequency (Hz) | Measuring pulse frequency: 1.5 to 30, Reel pulse frequency: 0 to 200 |
| Input | Reel pulse input: 2 inputs for reel pulse sensor Measure pulse input: Input for measure pulse sensor Contact input: Reverse/forward, reel diameter reset, measured length/remaining length reset, memory hold, 5 inputs for predrive |
| Mass (kg) | About 0.2 |
| Maximum Acceleration (m/s²) | a=V/t=(1~50)/60 t=acceleration/deceleration time |
| Outer Dimensions (mm) | 50x68x35 |
| Output | Contact output: 3 points for timing detection, for reel diameter, for length measurement/remaining length switchable, synchronized with peripheral speed |
| Power Input (V) | Input: None (supplied from LE7-40GU-L), Output: DC12 for encoder/DC12 for proximity switch |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rotation Speed (rpm) | Winding shaft: N=0~3600 |
| Specification | ●Length measurement/remaining length (m): 0 to 65000 |
| Thickness | Material thickness: T=0.1 μm ~ 10 mm |
