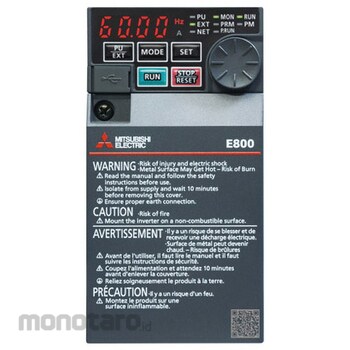

Mitsubishi Electric Inverter FREQROL-E800 series 200V class
#Grup produk P112479413
Sebelum PPN:
Rp2.599.900 - Rp57.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Voltage Tolerance (V) | 170 to 264(50/60Hz) |
|---|---|
| Ambient Humidity (% RH) | 90 or less (no condensation) No substrate coating |
| DC braking | Induction motor: Variable operating frequency (0 to 120Hz), operating time (0 to 10s), operating voltage (0 to 30%). PM motor: Variable operating time (0 to 10s). Operating voltage (operating current) cannot be changed. |
| Frequency (Hz) | 50/60 |
| Frequency Characteristic | Voltage / base frequency 0 to 590Hz + optional setting. Constant torque / reduced torque pattern can be selected (induction motor only) |
| Output Frequency (Hz) | Induction motor: 0.2 to 590 (upper limit frequency is 400 when using advanced magnetic flux vector or real sensorless vector), PM motor: 0.2 to 400 (cannot be driven above the maximum motor frequency) |
| Output overload current rating | LD: 120% 60s, 150% 3s (inverse time characteristic) ambient temperature 50°C, ND (initial setting): 150% 60s, 200% 3s (inverse time characteristic) ambient temperature 50°C |
| Power Supply Voltage | Three-phase 200V class |
| Protection Class | Closed type (IP20) (IEC + 60529) |
| Signal Format | Start signal: forward / reverse individual, start signal self-holding input (3 + wire input) + selectable |
| Storage Temperature (°C) | -40 to 70 |
| Torque boost | Manual torque boost |
| Type of control | Common: Soft-PWM control/high carrier frequency PWM control, induction motor: V/F control, advanced magnetic flux vector control, real sensorless vector control, PM motor: PM sensorless vector control |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Applicable motor indicates the maximum applicable capacity when using a Mitsubishi standard 4-pole motor. Rated output capacity indicates when the output voltage is 220V for 200V class.Ulasan Produk
