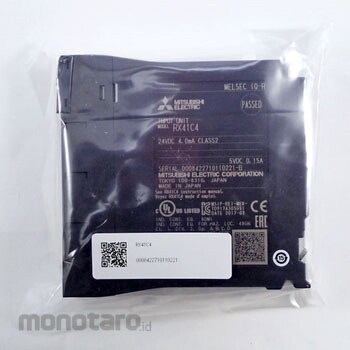

Mitsubishi Electric Input Unit
#Grup produk P112478715
Spesifikasi
| Applicable Connector | A6CON1, A6CON2, A6CON3, A6CON4 (sold separately) |
|---|---|
| Common Specifications | (Input) 32 points 1 common |
| Current Consumption (A) | 0.15 (DC5V internal) |
| Dimensions, H x W x D (mm) | 106 (base unit mounting part 98 mm) x 27.8 x 110 |
| Input Format | DC input (positive common / negative common shared type) |
| Input Resistance (kΩ) | 5.3 |
| Input Voltage (V) | DC24 (ripple ratio within 5%) (Allowable voltage range: DC20.4 to 28.8V) |
| Insulation Resistance (MΩ) | 10 or more with an insulation resistance tester |
| Mass (kg) | 0.11 |
| Number of Input Points | 32 points |
| Occupied In/Out Points | 32 points (I / O assignment: input 32 points) |
| Protection Class | IP2X |
| Rated Input Current (mA) | 4 TYP.(DC24V) |
| Response Time | Input: [OFF → ON] 0.1ms / 0.2ms / 0.4ms / 0.6ms / 1ms / 5ms / 10ms / 20ms / 70ms, [ON → OFF] 0.2ms / 0.3ms / 0.5ms / 0.7ms / 1ms / 5ms / 10ms / 20ms / 70ms |
| Wiring Connection | (External) 40-pin connector |
