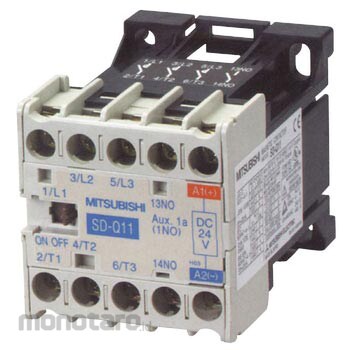

Mitsubishi Electric High-Sensitivity Contactor Electromagnetic Contactor SD-Q Series
#Grup produk P112478478
Spesifikasi
| Applicable Motor Capacity (kW) | Single-phase motor (AC-3 class): 0.2 (100-110V)/0.4 (200-220V), Three-phase squirrel-cage motor (AC-3 class): 2.5 (200-240V)/4 (380-440V)/4 (500-550V) |
|---|---|
| Applicable Rail Width (mm) | 35 |
| Atmosphere | Does not contain dust, smoke, corrosive gas, moisture or salt. If used continuously for a long time in a sealed state, it may lead to contact problems. |
| Auxiliary Contact | 1a |
| Average power consumption | 1.3W |
| Coil Rated Voltage (V) | DC24 |
| Connectable Wire (mm²) | Main circuit compatible wire size: 1.25 to 2 (Φ1.6), control circuit compatible wire size: 1.25 to 2 (Φ1.6) |
| Current Capacity (A) | Breaking: Rated operating voltage 220V: 120, Rated operating voltage 440V: 90, Closed circuit: Rated operating voltage 220V: 120, Rated operating voltage 440V: 90 |
| Electrical Durability | AC3 class: 1 million times (the auxiliary contact is rated 500,000 times) |
| Frame | Q11 |
| Installation Altitude (m) | 2000 or less |
| Length (mm) | 51 |
| Mass (kg) | 0.19 |
| Mechanical Durability | 10 million times |
| Open Voltage (V) | 10% or more of the rated voltage |
| Operating Time (ms) | Coil ON → Main contact ON: 50 or less, Coil OFF → Main contact OFF: 20 or less |
| Operating Voltage | 85% or less of rated voltage |
| Rated Insulation Voltage (V) | 690 |
| Shock Resistance (m/s²) | 49 or less |
| Storage Temperature (°C) | -30 to 65 (but no condensation or freezing). Storage temperature refers to the ambient temperature during transportation or storage, and must be within the operating temperature range when starting to use the product. |
| Thickness (mm) | 66.5 |
| Tightening Torque (N m) | Main circuit: 0.94 to 1.17 (reference value 1), control circuit: 0.94 to 1.17 (reference value 1) |
| Type | Electromagnetic contactor |
| Type of Operation | Irreversible |
| Type of Sign | Can be mounted on IEC and DIN standard 35mm wide rails |
| Type of Terminal Fitting | IEC35mm rail mounting is possible. |
| Vibration Resistance (m/s²) | 19.6 or less (10 to 55 Hz) |
| Width (mm) | 45 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
The SD-Q series high-sensitivity contactor is a compact, high-performance DC-operated contactor that can be directly driven by a transistor output (DC24V 0.1A).Ulasan Produk
