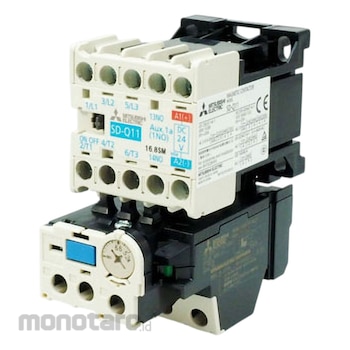

Mitsubishi Electric High-Sensitivity Contactor (Electromagnetic Switch) MSOD-Q Series
#Grup produk P112478414
Spesifikasi
| Auxiliary Contact | 1a |
|---|---|
| Coil Rated Voltage (V) | DC24 |
| Compatible Motor Capacity (100-120V) (kW) | Single-phase motor (AC-3 class): 0.2 |
| Compatible Motor Capacity (200-240V) (kW) | Three-phase squirrel-cage motor (AC-3 class): 2.5, single-phase motor (AC-3 class): 0.4 |
| Compatible motor capacity (380-440V) (kW) | Three-phase squirrel-cage motor (AC-3 class): 4 |
| Compatible motor capacity (500-550V) (kW) | Three-phase squirrel-cage motor (AC-3 class): 4 |
| Frame | Q11 |
| Length (mm) | 91 |
| Mass (kg) | 0.3 |
| Motor Capacity (kW) | 1.5 |
| Operating Frequency (operation/hour) | 1800 |
| Rated Insulation Voltage (V) | 690 |
| Rated operating voltage (V) | 200 |
| Screw Size | M3.5 |
| Specification | With terminal cover |
| Thickness (mm) | 77 |
| Type | electromagnetic switch |
| Type of Operation | Irreversible |
| Width (mm) | 49.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
■ Direct drive of contactor with semiconductor output (transistor output) By adopting a high-efficiency polarized electromagnet, direct drive is possible with a transistor output rated at DC24V, 0.1A. ■ Built-in surge absorption function as standard The built-in surge absorption function suppresses the surge voltage of the coil, preventing adverse effects due to the surge voltage when the coil is off, such as destruction of peripheral electronic devices. ■ Suitable for overload and restraint protection of new thermal relay motors with added ease of use.Ulasan Produk
