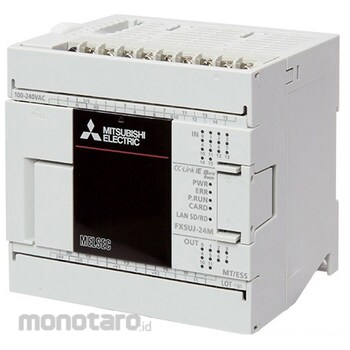

Mitsubishi Electric FX5UJ CPU unit
#Grup produk P112477798
Sebelum PPN:
Rp7.699.900 - Rp14.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection Shape | Removable terminal block (M3 screw) |
|---|---|
| Flash | Write up to 20,000 times |
| Frequency (kHz) | 10 |
| Fuse | Power supply: 250V 3.15A time lag fuse |
| In / Out control method | (1) Number of input/output points: 256 points or less, (2) Number of remote I/O points: 256 points or less, Total of (1) and (2): 256 points or less |
| Input Current (mA) | X0 to X7: 5.3/DC24V, X10 and later: 4.0/DC24V |
| Input Signal | (Voltage) 24V DC +20%, -15%, (Current) X0 to X7 5.1mA/24V DC, X10 and above: 4.0mA/24V DC |
| Memory Capacity | Program capacity: 48k steps (96k bytes, flash memory), SD memory card: memory card capacity (SD/SDHC memory card: maximum 16GB), device/label memory: 120k bytes, data memory/standard ROM: 5MB |
| Operation Indicator | ●Input: LED lights up when input is ON ●Relay output: LED lights up when output is ON ●Transistor output: LED lights up when output is ON |
| Power Supply Voltage (V) | ●Relay output external: DC30 or less, AC240 or less (AC250V or less if not compliant with CE, UL, or cUL standards) ●Transistor output external: DC5 to 30 |
| Power failure retention function | Up to 12K words |
| Rated Frequency (Hz) | 50/60 |
| Rated Sensitivity Current (mA) | ON X0 to X7: 3.5mA or more, X10 and later: 3.0mA or more OFF: 1.5mA or less |
| Response Time | ●Input: See the manual for details. ●Relay output: OFF→ON: approx. 10 ms ON→OFF: approx. 10 ms ●Transistor output: Y0 to 3 5 μs or less/10 mA or more (DC 5 to 24 V), Y3 and later 0.2 ms or less/200 mA or more (DC 24 V) |
| Retention Method | Large capacitor |
| Signal Format | No-voltage contact input, sink: NPN open collector transistor, source: PNP open collector transistor |
| Storage Temperature (°C) | -25 to 75 (no freezing) |
| Storage Temperature Range (°C) | -25 to 75 (no freezing) |
| USB Port | 1ch |
