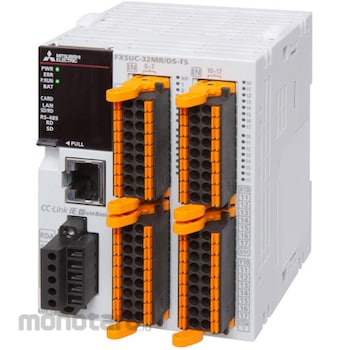

Mitsubishi Electric FX5UC CPU unit
#Grup produk P112477752
Spesifikasi
| Clock Function | Display information: Year, month, date, hour, minute, second, day of the week (leap year automatic detection), accuracy: ±45 seconds per month/25°C (TYP) |
|---|---|
| Connection Shape | Spring clamp terminal block |
| Flash | Write up to 20,000 times |
| Frequency (kHz) | [X0 to X5]:200/[X6 to X17]:10 |
| Fuse | 125V 3.15A Time Lag Fuse |
| In / Out control method | Refresh method |
| Input Current (mA) | X0 to X17:5.3mA/DC24V |
| Input Format | Sink / source |
| Input Signal | No-voltage contact input, sink: NPN open collector transistor/source: PNP open collector transistor |
| Input Voltage (V) | DC24 +20%, -15% |
| Inrush Current | Maximum 35A 0.5ms or less/DC24V |
| Memory Capacity | Program capacity: 64k steps/128k steps (128k bytes/256k bytes, flash memory), SD memory card: memory card capacity (SD/SDHC memory card: maximum 16GB), device/label memory: 120k bytes, data memory/standard ROM: 5MB |
| Number of Input Points | 16 points |
| Number of Input/Output Points | (1) Number of input/output points: 384 points or less, (2) Number of remote I/O points: 512 points or less, Total of (1) and (2): 512 points or less |
| Number of Outputs | 16 points |
| Operation Indicator | LED lights up when input is ON/LED lights up when output is ON |
| Output Format | Relay output |
| Power Consumption (W) | 5 |
| Power capacity (mA) | DC24V: 500, DC5V: 720 |
| Power failure retention function | Up to 12K words |
| Programming language | Ladder Diagram (LD), Structured Text (ST), Function Block Diagram/Ladder Language (FBD/LD), Sequential Function Chart (SFC) |
| Rated Sensitivity Current (mA) | [Input ON] X0 to X17: 3.5 or more / X10 and later: 3.0 or more, [Input OFF] 1.5 or less |
| Rated Voltage (V) | DC24 |
| Rated voltage fluctuation Range | +20%, -15% |
| Retention Method | Large capacitor |
| Type | Standby type, initial execution type, scan execution type, fixed cycle execution type, event execution type |
| Type of control | Stored program iteration |
