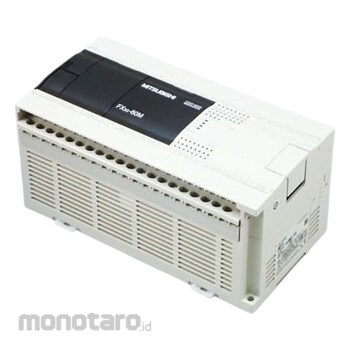

Mitsubishi Electric FX3G Series Basic Unit
#Grup produk P112477619
Spesifikasi
| Applicable Standard | UL cUL CE(EMC) CE(LVD) CE(RoHS) KC(EMC) LR NK DNV ABS RINA BV KR |
|---|---|
| Ground | Class D grounding (ground resistance: 100 Ω or less) <Common grounding with high-voltage systems is not possible> |
| Input Format | DC24V sink / source |
| Input specifications | DC24V 7mA / 5mA . Sink / source input 7mA / 5mA |
| Installation Location | Inside the control panel |
| Module Type | Logic Control Module |
| Noise resistance | Noise voltage 1000Vp-p, noise width 1μs, rise time 1ns, period 30 to 100Hz, noise simulator |
| Number of Input Points | 36 |
| Number of Outputs | 24 points |
| Operating Temperature (°C) | 0 to 55 |
| Operation Environment | There is no corrosive or flammable gas, and there is not much conductive dust. |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 175x86x90 |
| Output Current (A) | 8 |
| Output Format | relay |
| Output specifications | 2A / 1 point (8A / 4 points), 250 VAC, 30 VDC |
| Program Memory Capacity | 32000 step (32000 step including comment and file register) |
| Programming Interface | Computer, HMI |
| Rated Voltage (V) | DC24 |
| Relative Humidity (%RH) | [During operation] 5 to 95 (no condensation) |
| Series | FX3G series |
| Shock Resistance | 147m/s², duration 11ms, half-sine pulse, 3 times each in X, Y, and Z directions |
| Specification | FX3G CPU Base Units |
| Storage Temperature (°C) | -25 to 75 |
| Storage Temperature Range (°C) | -25 to 75 |
| Terminal Type | screw |
| Type of Sign | DIN rail |
| Unit Type | Basic unit |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
3rd generation standard model. All-in-one ease of use and flexible scalability. The usability of the FX3 series is condensed. Cost performance suitable for small-scale control.Ulasan Produk
