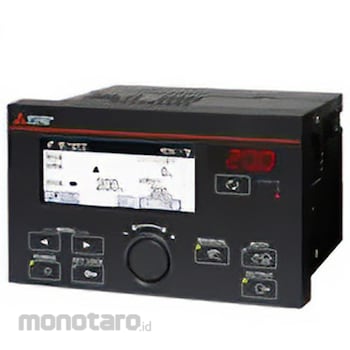

Mitsubishi Electric Feedback/Open Loop Tension Controller
#Grup produk P112476993
Spesifikasi
| Atmosphere | No corrosive or flammable gases or conductive dust, and not too dusty |
|---|---|
| Communication Function | Ethernet communication: CC-Link IE Field Network Basic, SLMP, MODBUS/TCP (slave), GT Designer3 USB communication: PC communication (GT Designer3, data transfer tool) RS-485 communication: Simple PC-to-PC link, MODBUS/RTU, ASCII (slave) |
| Display | LCD: 320 dots x 128 dots TFT monochrome, 7-segment LED (for monitor): 4 digits (1 set), Unit display LED: 4 types (1 set), Status display LED: 6 points |
| Ground | Type D grounding (100Ω or less, common grounding with high-voltage systems is not permitted) |
| Input | Tension detector input: For LX type tension detector, for strain gauge (range switching) |
| Installation Location | Inside the control panel |
| Insulation Resistance (MΩ) | DC500 V 5 or more measured with an insulation resistance tester between all terminals and the earth terminal |
| Mass (kg) | About 1 |
| Noise Immunity | Noise voltage 1000Vp-p noise width 1μsec period 30 to 100Hz noise simulator |
| Operating Humidity Range (%RH) | 35 to 85 (no condensation) |
| Operating Temperature Range (°C) | 0 to 40 |
| Operation | Touch panel: Analog resistive film type, Jog dial: With push-on switch, Key switch: 8 points |
| Option | Expansion options: LE7-DCA type reel diameter calculation option, LE7-CCL type network option<br>External memory cassette: LD-8EEPROM type EEPROM cassette |
| Outer Dimensions (mm) | 105x170x125 |
| Power Input (V) | Input: AC100 to 240, Output: DC5 for tension detector, DC5 for volume, DC24 for contact input |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shock Resistance (m/s²) | 147 11ms action time, sine half-wave pulse, 3 times in each direction of X, Y, and Z |
| Signal Format | Contact signal input: 6 general-purpose points, sink/source switchable Output: 2 general-purpose points Analog signal input: 3 general-purpose points Output: 2 general-purpose points |
| Storage Humidity Range (%RH) | 35 to 85 (no condensation) |
| Storage Temperature Range (°C) | -20 to 60 |
| Type of Sign | Panel mounting, floor mounting |
| Withstand Voltage (V/minute) | AC1500 Measured between all terminals and the ground terminal |
