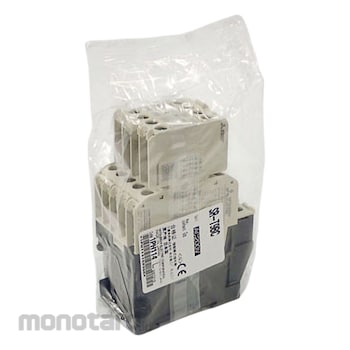

Mitsubishi Electric Electromagnetic Relay AC Operation Type SR-T Series
#Grup produk P112476373
Spesifikasi
| Coil Rated Voltage (V) | AC200 |
|---|---|
| Frame | T9 |
| Frequency (Hz) | 50/60 |
| Length (mm) | 75 |
| Mass (kg) | 0.32 |
| Number of Poles | 9 |
| Rated Impulse Withstand Voltage (kV) | 6 |
| Rated Insulation Voltage (V) | 690 |
| Standard | JIS C8201-5-1, IEC60947-5-1, EN60947-5-1, BS EN60947-5-1, DIN EN60947-5-1(VDE0660-200) |
| Thickness (mm) | 108 |
| Type | relay |
| Width (mm) | 43 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Rail mounting is fully adopted. The IEC35mm rail mounting mechanism that can significantly reduce the assembly time of the board is fully adopted. Contact reliability is improved by adopting twin contacts on the entire surface. Different voltages of a and b contacts can be used. The insulation between the poles and the upper and lower contacts of the same pole is strengthened. Uses self-up terminal screws that can securely tighten electric wires, round crimp terminals, and square tip crimp terminals.Ulasan Produk
