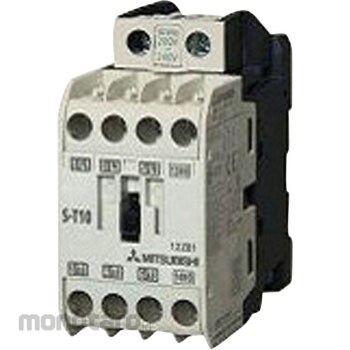

Mitsubishi Electric Electromagnetic Contactor AC Operation Type (Lossy) ST Series
#Grup produk P112476276
Spesifikasi
| Auxiliary Contact | 2b |
|---|---|
| Coil Rated Voltage (V) | AC200 |
| Compatible Motor Capacity (200-240V) (kW) | Three-phase squirrel-cage motor (AC-3 class): 2.7 |
| Compatible motor capacity (380-440V) (kW) | Three-phase squirrel-cage motor (AC-3 class): 4 |
| Compatible motor capacity (500-550V) (kW) | Three-phase squirrel-cage motor (AC-3 class): 5.5 |
| Contact Configuration | (Main contact) 3a |
| Electrical Durability | AC-3 class: 2 million times, AC-4 class: 30,000 times, AC-1 class: 500,000 times |
| Frame | T12 |
| Frequency (Hz) | 50/60 |
| Length (mm) | 75 |
| Mass (kg) | 0.27 |
| Mechanical Durability | 10 million times |
| Open thermal Current (A) | 20, Auxiliary contacts: 10 |
| Operating Frequency (operation/hour) | AC-3 class: 1800, AC-4 class: 300, AC-1 class: 1200 |
| Operation Method | (Operation coil, operation circuit specifications) Standard specifications |
| Pollution Degree (Environment to Use) | 3 |
| Power Consumption (W) | 2.2 |
| Rated Impulse Withstand Voltage (kV) | 6 |
| Rated Insulation Voltage (V) | 690 |
| Specification | ●Special auxiliary contact: Standard specifications●Terminal specifications: Wiring streamlining terminal included●Operation coil input: Continuous/7 Instantaneous/45 |
| Thickness (mm) | 78 |
| Type | Standard specification type |
| Type of Operation | Irreversible |
| Type of Sign | Screw, DIN rail |
| Width (mm) | 43 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
IEC 35mm rail can be attachedUlasan Produk
