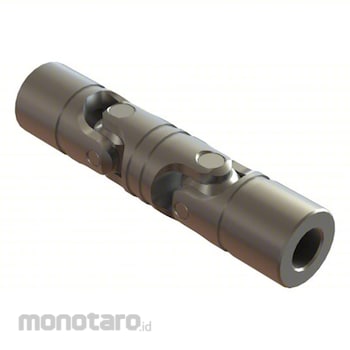

BELDEN Universal Joint Alloy Steel
#Grup produk P112473792
Spesifikasi
| Bore Diameter (inch) | 1 |
|---|---|
| Bore Type | Round |
| Break Torque (inch-lbs) | 19350 |
| Center Yoke Length (inch) | 42432 |
| Coupling Size | 2000 |
| Included Screws | (2) Set Screw |
| Joint Diameter (inch) | 2 |
| Joint Type | Pin & Block |
| Length Through Bore (inch) | 1-11/16 |
| Maximum Operating Angle (°) | 90 |
| Maximum Speed (rpm) | 1000 |
| Number of Joints | Double |
| Outside Diameter (inch) | 2 |
| Overall Length (inch) | 8-11/16 |
| Rated Torque (inch-lbs) | 3870 |
| System of Measurement | Inch |
| U-Joint Material | Alloy Steel |
| Yoke Length (inch) | 2-3/4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Heavy-duty double universal joints for round shafts lock two coupled shafts in place with set screws. They are heat treated and machined to high tolerances to ensure long service life.
Feature
AS9100D Certified; AS9102 FAIR; DFARS Compliant; Lot Traceability/Part Serialization; REACH Compliant; RoHS2 CompliantUlasan Produk
