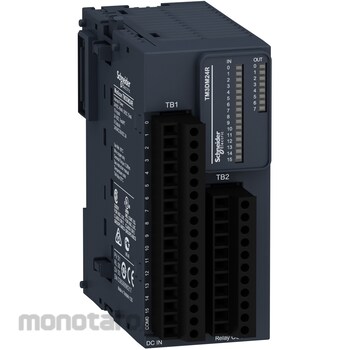

Schneider Electric TM3 expansion IO unit digital input/output
#Grup produk P112472119
Kondisi Barang:
Authorized Partner
Spesifikasi
| Contact | 1 N/O contact |
|---|---|
| Digital input | Sink / source |
| Dimensions, Width W x Height H x Depth D (mm) | 39.1x90x70 |
| Input Method | Type 1 (IEC61131-2, Edition3) |
| Module Type | Comes with a removable terminal block (screw type) with a pitch between terminals of 3.81mm (3.81mm) , [Expansion] digital input/output |
| Mounting | Mounts on DIN rail or on panel using dedicated mounting kit TMAM2 |
| Number of Input Points | 16 digital points |
| Number of Outputs | 8 relay points |
| Output Current (A) | Up to 2 (per output) , up to 7 (per channel group) |
| Rated Input Voltage (V) | DC24 |
| Rated Output Voltage (V) | DC24/AC240 |
| Terminal | Screw terminal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Use
Modicon M221, and M221 Book Logic Controller Modicon M241 Logic Controller Modicon M251 Logic Controller Modicon M261 Logic Controller Proface STC6000 SeriesUlasan Produk
