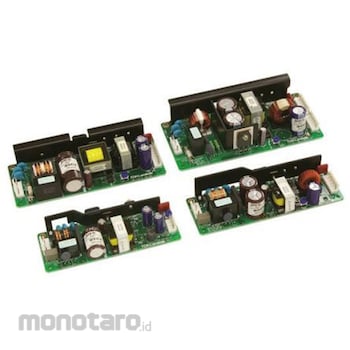

TDK (TDK-Lambda) TDK-Lambda Switching Power Supply 24V dc 6.3A 151W VS150E-24
#Grup produk P112471013
Spesifikasi
| Applicable Standard | Noise terminal voltage, noise electric field strength: EN55011 / EN55022-B, FCC-B, VCCI-B compliant |
|---|---|
| Cooling Method | Natural air cooling |
| Efficiency | 0.87 |
| Height (mm) | 34 |
| Holding Time (ms) | 20 |
| Input Current (A) | 3.2 |
| Input Frequency (Hz) | 47~63 |
| Insulation Resistance (MΩ) | 100min (Output-FG: 500VDC, 25°C, 70%RH) |
| Leakage Current | 0.5mA or less |
| Length (mm) | 160 |
| Maximum Output Power (W) | 151.2 |
| Mounting | Open frame (board) |
| Number of Phases | Single-phase |
| Operating Temperature (°C) | -10~70(-10~50/100%, 60/70%, 70/20%) |
| Output Current (A) | (Maximum) 6.3 |
| Output Voltage Adjustment Range (V) | 21.6~26.4 |
| Overcurrent Protection | 6.61A~ |
| Overvoltage Protection | DC27.6~32.4V |
| Rated Output Power (W) | 150 |
| Rated Output Voltage (V) | DC24 |
| Ripple Noise (mVp-p) | 150(0≤Ta≤70°C) /180(-10≤Ta≤0°C) |
| Safety Standard | Certification: CSA60950-1, EN60950-1, UL60950-1, CSA62368-1, EN62368-1, UL62368-1, EN50178, Compliant with: Electrical Appliance and Material Safety Act |
| Shape | Open frame |
| Storage Temperature (°C) | -30~85 |
| Temperature fluctuation | 0.02%°C |
| Terminal Shape | Connector |
| Vibration Resistance | 10 to 55 Hz (sweep for 1 minute) 19.6 m/s² constant, 1 hour in each of X, Y, and Z directions |
| Width (mm) | 75 |
| Withstand Voltage | Input-FG / 2kVAC (10mA) , Input-Output / 2kVAC (10mA) , Output-FG / 500VAC (20mA) 1min each |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Output voltage = 24V dcOutput current = 6.3A
Rated Power = 151W
Number of Outputs = 1
Input voltage = 110 → 175 V dc, 85 → 132 V ac
Mounting Type = Chassis Mount Package Type = Open Frame Length = 160mm
Width = 34mm
Depth = 75mm
Efficiency = 87%
Weight = 390g
VS-E series, single output, 50 → 150 W. High efficiency and reduced standby power consumption. Approximately 30% smaller than conventional products. Considering industrial use, 100% efficiency at 50℃ is achieved.
