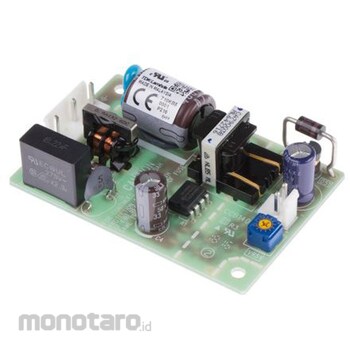

TDK (TDK-Lambda) TDK-Lambda Switching Power Supply 12V dc 900mA 10.8W ZWS10B-12
#Grup produk P112470634
Spesifikasi
| Applicable Standard | Noise terminal voltage, noise electric field strength: Compliant with EN55011/EN55032-B, FCC-B, VCCI-B Immunity: Compliant with IEC61000-6-2, IEC61000-4-2, -3, -4, -5, -6, -8, -11 |
|---|---|
| Cooling Method | Natural air cooling |
| Height (mm) | 22 |
| Holding Time (ms) | 20 |
| Input Current (A) | 0.25/0.13 |
| Input Frequency (Hz) | 47~63 |
| Input Voltage Range (V) | DC120~370, AC85~265 |
| Insulation Resistance (MΩ) | 100min (Output-FG: 500VDC, 25°C, 70%RH) |
| Leakage Current | 0.15/0.3mA or less (100/230VAC) |
| Length (mm) | 73.5 |
| Maximum Output Power (W) | 0.9 |
| Mounting | Open frame (board) |
| Number of Phases | Single-phase |
| Operating Temperature (°C) | Natural air cooling/-10 to 70 (-10 to 50/100%, 60/70%, 70/20%) |
| Output Voltage Adjustment Range (V) | 10.8~13.2 |
| Overcurrent Protection | 0.95A~ |
| Overvoltage Protection | DC13.8~16.2V |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Output Voltage (V) | DC12 |
| Ripple Noise (mVp-p) | 150(0≤Ta≤70°C) /180(-10≤Ta<0°C) /240(-10≤Ta<70°C) |
| Safety Standard | Certification: CSA60950-1, EN60950-1, UL60950-1, CSA62368-1, EN62368-1, UL62368-1, EN50178 Compliant with Electrical Appliance and Material Safety Act (at 100VAC) |
| Shape | Open frame |
| Shock Resistance | 196.1m / s² or less |
| Storage Temperature (°C) | -30~75 |
| Temperature fluctuation | 0.02%°C |
| Vibration Resistance | 10 to 55 Hz (sweep for 1 minute) 19.6 m/s² constant, 1 hour in each of X, Y, and Z directions |
| Width (mm) | 50 |
| Withstand Voltage | Input-FG / 2kVAC (10mA) , Input-Output / 3kVAC (10mA) , Output-FG / 500VAC (20mA) 1 minute each |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Output voltage 12V dcOutput current 900mA
Rated power 10.8W
Number of outputs: 1
Input voltage 120-370 dc, 85-265 ac
Mounting type: Chassis mount package type: Open frame length: 73.5mm
Width 55mm
Depth 22mm
Efficiency 83%
Maximum temperature +70℃
TDK Lambda ZWS-B Series 10-30 Switching Power Supply. The TDK Lambda ZWS-B series is a highly reliable single-output power supply. This switching power supply is 30% smaller than the previous generation. The ZWS-B series single-output power supplies have a maximum no-load input power of 0.5V, making them suitable for green products. They are ideal for applications such as LED, industrial, test, and broadcasting. 30% smaller than the previous generation. Operating temperature: -10 to +70°C. No-load input power: 0.5V. Cap life: 100mA. Simplifies equipment design. Improves system power optimization. Ideal for green products. Excellent reliability.
