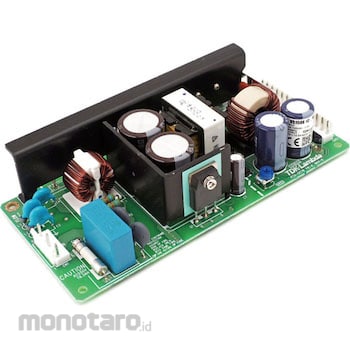

TDK (TDK-Lambda) Switching Power Supply VS-E Series
#Grup produk P112469674
Spesifikasi
| Cooling Method | Natural air cooling |
|---|---|
| Input Frequency (Hz) | 47~63 |
| Insulation Resistance (MΩ) | 100min (Output-FG: 500VDC, 25°C, 70%RH) |
| Leakage Current | 0.5mA or less |
| Number of Phases | Single-phase |
| Safety Standard | Certification: CSA60950-1, EN60950-1, UL60950-1, CSA62368-1, EN62368-1, UL62368-1, EN50178, Compliant with: Electrical Appliance and Material Safety Act |
| Storage Temperature (°C) | -30~85 |
| Terminal Shape | Connector |
| Vibration Resistance | 10 to 55 Hz (sweep for 1 minute) 19.6 m/s² constant, 1 hour in each of X, Y, and Z directions |
| Withstand Voltage | Input-FG / 2kVAC (10mA) , Input-Output / 2kVAC (10mA) , Output-FG / 500VAC (20mA) 1min each |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
High efficiency and reduced standby power consumption. Approximately 30% smaller than conventional products. Considering industrial use, 100% durability at 50℃ is achieved. 5-year free warranty (conditional).Use
Computer, communication, etc.Ulasan Produk
