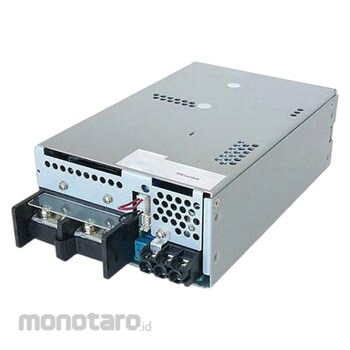

TDK (TDK-Lambda) Switching power supply 1000W RWS1000B series
#Grup produk P112469559
Spesifikasi
| AS ONE Part Number | 67-0478-43 |
|---|---|
| Applicable Standard | Noise terminal voltage, noise electric field strength: Compliant with EN55011/EN55032-B, FCC-B, VCCI-B, Immunity: Compliant with IEC61000-6-2, IEC61000-4-2, -3, -4, -5, -6, -8, -11 |
| Cooling Method | Forced air cooling |
| Efficiency | (100/115VAC) 81%/82% (200/230VAC) 85%/85% |
| Harmonic current regulation | IEC61000-3-2 compliant |
| Height (mm) | 63 |
| Holding Time (ms) | 20 |
| Input Current (A) | (100/115VAC) 13/11 (200/230VAC) 7/5.5 |
| Input Frequency (Hz) | 47~63 |
| Insulation Resistance (MΩ) | 100min (Output-FG: 500VDC, 25°C, 70%RH) |
| Leakage Current | 1.2 mA or less |
| Length (mm) | 198 |
| Number of Phases | Single-phase |
| Operating Temperature (°C) | -20~60(-20~50/100%, 60/65%) |
| Output Current (A) | (Maximum) 84 |
| Output Voltage Adjustment Range (V) | 10.2~13.8 |
| Output voltage (V) | DC12 |
| Overcurrent Protection | 88.2A~ |
| Overvoltage Protection | DC14.4~17.4V |
| Power Factor | 0.98/0.95 |
| Rated Power (W) | 1000 |
| Ripple Noise (mVp-p) | 150(0≤Ta≤70°C) /180(-20≤Ta<0°C) |
| Safety Standard | Certification: CSA60950-1, EN60950-1, UL60950-1, CSA62368-1, EN62368-1, UL62368-1 Compliant with: Electrical Appliance and Material Safety Act |
| Shape | With chassis (unit) |
| Storage Temperature (°C) | -30~75 |
| Temperature fluctuation | 0.02%°C |
| Vibration Resistance | 10 to 55 Hz (sweep for 1 minute) 19.6 m/s² constant, 1 hour in each of X, Y, and Z directions |
| Width (mm) | 127 |
| Withstand Voltage | Input-FG/2kVAC (20mA) , Input-Output/4kVAC (20mA) , Output-FG/1.5VAC (20mA) for 1 minute each |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Maximum output power: 1000WInput voltage range: 85-265VAC
Operating temperature range: -20 to +60°C (-20 to +50°C: 100%, +60°C: 60%)
External dimensions (WxHxD) mm: 127 x 63 x 198
