TDK (TDK-Lambda) Noise filter RTMN series
#Grup produk P112465599
Sebelum PPN:
Rp4.999.900 - Rp5.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Derating Start Temperature (°C) | 50 |
|---|---|

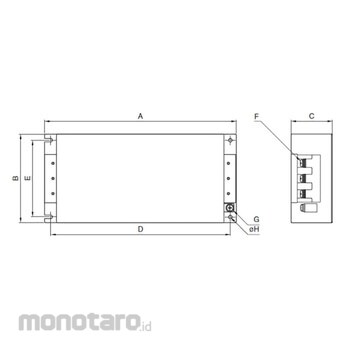

| Dimension A (mm) | 210 |
| Dimension B (mm) | 95 |
| Dimension C (mm) | 50 |
| Dimension D (mm) | 195 |
| Dimension E (mm) | 78 |
| Dimension F | M4 |
| Dimension G | M4 |
| Insulation Resistance (MΩ) | 100(DC500V/1min) |
| Leakage Current | 5mA max. (DC500V/60Hz) |
| Operating Temperature Range (°C) | -25~+85 |
| Rated Voltage (V) | [AC/DC] 500 |
| Recommended Tightening Torque Range (N m) | 1.27 |
| Withstand Voltage (V) | AC2500, 60sec [line - earth] |
| Withstand Voltage (V/s) | AC2500/60 (between line ground) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Block terminal three-phase high attenuation, high voltage pulse compatible, low profileUlasan Produk
