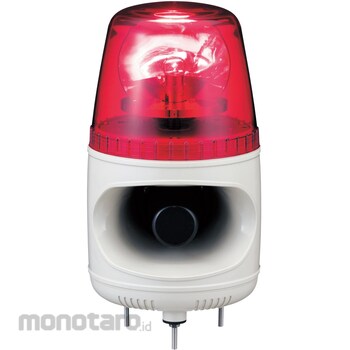

Schneider Electric Horn speaker type, built-in electronic alarm, bulb rotating light, Φ135, AHMCK series (D type)

Φ135, direct mount type, electronic sound, loud multi-sound.
This is a horn speaker type hybrid bulb rotating light that can reliably communicate information using light and sound.
External contacts allow for control of light only or light and sound simultaneously.
The maximum volume is 105dB.
(The built-in volume control allows adjustment from a minimum of 0dB to a maximum of 105dB) The 16 built-in tones can be controlled by bit input or binary input.
With bit input, you can use the built-in rotary switch to set any tone group and control four tones.
With binary input, 15 sounds can be controlled by external signals.
The non-voltage contact circuit is compatible with NPN open collector connection as standard, and can be directly driven by a PLC.
There is also an AHMCKE type with the same functions but different tones.
Protection characteristics are IP23 (when installed in the correct direction).
