Convenience & Safety
-Digital Timer - 1 min. to 99hr 59min, Delayed On/Off
-Rounded inner chamber corners for easy cleaning
-Over-temperature limiter and Leakage Breaker
-Tight gasket seal and pull-up latch
Options
-Viton Gasket
-Programmable controller with RS-485 / RS-232C PC Interface for Monitoring and Data Recording

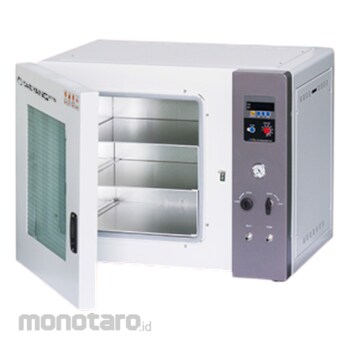

DAEYANG Vacuum Oven
#Grup produk P112455079
Spesifikasi
| Chamber Volume (L) | 66 |
|---|---|
| Controller | PID Controlled Microprocessor Touch Pad, Digital Display |
| Controller Sensor (ohm) | Pt100 |
| Dimensions Exterior (WxDxH) (mm) | 783x590x630 |
| Dimensions Interior (WxDxH) (mm) | 400x400x410 |
| Electrical Requirements | 110VAC 60Hz or 220VAC 50/60Hz |
| Heat Up Time | 100°C Within 45minute |
| Material Eksternal | Double Painted & Baked Steel |
| Material Internal | STS #304 |
| Power Heater (W) | 1600 |
| Safety | Electrical Leakage Breaker, Over Temp. Cut-off |
| Shelves Load per Shelf (kg) | 20 |
| Shelves Number of Standards | 2 |
| Temperature Range (°C) | Amb. +5 to 250 |
| Temperature Stability (°C) | ±0.3 at 100 |
| Temperature Uniformity (°C) | ±3.5 at 100 |
| Vacuum Range (Mpa) | 0~0.1 (Analog Type) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
-Microprocess PID control / Auto-tuning / Calibration-Separate vacuum and vent ports
-Wide Temperature range for Various Test applications
-Block type heater and Anodized Aluminum Shelf
-Spring load glass door gives a tight vacuum seal and convenient for continuous monitoring of samples
