Convenience & Safety
-Over-temperature limiter and Leakage Breaker
-Digital Timer - 1 min. to 99hr 59min, Delayed On/Off
-Digital LED Display (1°C Resolution) with touch keypads
-Rounded inner chamber corners for easy cleaning and better airflowing
-Options (DYE 100)
-Programmable controller with RS-485 / RS-232C PC Interface for Monitoring and Data Recording

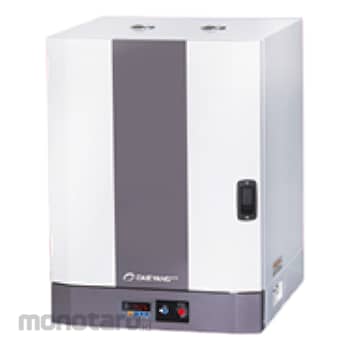

DAEYANG Natural Convection Oven with Solid Door
#Grup produk P112454830
Spesifikasi
| Chamber Volume (L) | 53 |
|---|---|
| Controller | PID Controlled Microprocessor Touch Pad, Digital Display |
| Controller Sensor (ohm) | Pt100 |
| Dimensions Exterior (WxDxH) (mm) | 580x540x800 |
| Dimensions Interior (WxDxH) (mm) | 420x360x350 |
| Electrical Requirements | 110VAC 60Hz or 220VAC 50/60Hz |
| Heat Up Time | 100°C Within 13minute |
| Material Eksternal | Double Painted & Baked Steel |
| Material Internal | Stainless Steel, 1.0t |
| Power Heater (W) | 800 |
| Safety | Electrical Leakage Breaker, Over Temp. Cut-off |
| Shelves Load per Shelf (kg) | 20 |
| Shelves Number of Standard/Max. | 2/8 |
| Temperature Range (°C) | Amb. +15 to 250 |
| Temperature Stability (°C) | ±1.0 at 100 |
| Temperature Uniformity (°C) | ±6.0 at 100 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
-Microprocess PID control / Auto-tuning / Calibration-Corrosion-resistant incoloy sheath heater and STS #304 interior
-Gravity-flow convection with vertical airflow for uniform sample heating
-Fully insulated dual-wall door
-Two circular adjustable vent holes to control air vapor circulation
