-Analysis elements: P(No.15)~U(No.92)
-Analyze 4-layer coatings.
-Measure the thickness and composition of coatings.
-Multiple collimators and filters
-Comply with ISO23345, ISO3497 and ASTM-B568.
-Visible samples with lead glass
-XY micro-motion platform
Prime

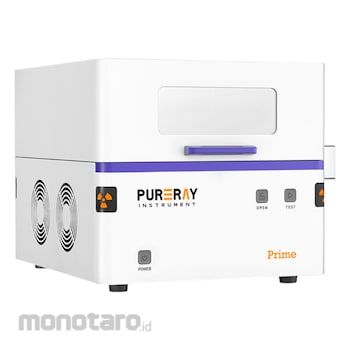

Prime is an X-ray fluorescence spectrometer developed by PURERAY Instrument for the non-destructive coating analysis. It can be widely used in electroplating and chemical plating industries. The analyzer adopts a USA AMPTEK customized Si-PIN detector, an embedded computer with a 10-core CPU and the Smart FP algorithm. Without standard samples, the spectrometer can measure the thickness and composition of coatings at the same time. It can fast and accurately analyze 4-layer coatings.
PURERAY INSTRUMENT Coating Thickness Analyzer
#Grup produk P112454496
Sebelum PPN:
Rp679.999.900 - Rp929.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Focus (mm) | Φ0.1 |
|---|---|
| HV Power Supply (kV/mA) | 50/1 Digital HV |
| Input Frequency (Hz) | 50 |
| Input Voltage (V) | AC100～240 |
| Machine Size (mm) | 460x522x368 |
| Noise (dB) | <65 |
| Package Size (mm) | 625x560x480 |
| Rated Power (W) | 150 |
| Stroke (mm) | 50x50 |
| Target Materials | Wolfram |
| Test Chamber Size (mm) | 374x344x155 |
| Window Material | Beryllium |
| X-Ray Tube (kV/mA) | 50/1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Multilayer analysisAnalyze 4-layer coatings
Smart FP algorithm
Simultaneous analysis of thickness and composition
