It is difficult for spatter to adhere. (Teflon coating: body housing, Teflon resin: head surface)
Uses flame-retardant cable.
Pre-wire connector type is available.

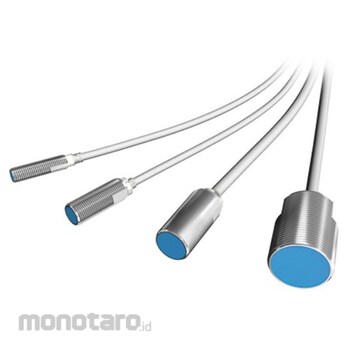

Azbil (Yamatake) Cylinder type DC 2-wire spatter resistant type proximity sensor + FL7M series
#Grup produk P112450737
Sebelum PPN:
Rp3.599.900 - Rp3.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Detection Method | High frequency oscillation type |
|---|---|
| Indicator Lamp | [For NO type] Operation display: Lights orange or green at output / Setting display: Lights green in the stable detection area [For NC type] Operation display: Lights orange at output |
| Insulation Resistance | 50MΩ or more (at 500VDC) |
| Leakage Current (mA) | 0.55 or less |
| Operating Distance (mm) | 3 |
| Operation Mode | N.O. |
| Outer Diameter | M12 |
| Rated power supply voltage | DC12/24V |
| Type | Non-polar |
| Vibration Resistance | 10 to 55 Hz, 1.5 mm double amplitude, 2 hours each in X, Y, and Z directions |
| Withstand Voltage | 1000 VAC, 50/60 Hz for 1 minute: Between live parts and case |
| Working Voltage Range | DC10 to 30V |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
It is difficult for spatter to adhere. (Teflon coating: body housing, Teflon resin: head surface)Uses flame-retardant cable.
Pre-wire connector type is available.
