Wiring cost is reduced with a DC 2-wire system.
Stable detection area indication with setting display.
Robust housing that can be highly tightened.
Indicator light that can be seen from anywhere.
The industry's smallest low current consumption. (Achieves 0.55mA)
High sealing performance. (IP67G)
The fastest response in the industry. (Achieves 2kHz)

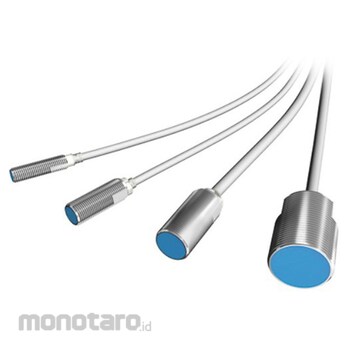

Azbil (Yamatake) Cylinder type DC 2-wire general type proximity sensor FL7M series
#Grup produk P112450612
Spesifikasi
| Cable Length (cm) | 30 |
|---|---|
| Detection Method | High frequency oscillation type |
| Indicator Lamp | [For NO type] Operation display: Lights orange or green at output / Setting display: Lights green in the stable detection area [For NC type] Operation display: Lights orange at output |
| Operating Distance (mm) | 3 |
| Operation Mode | N.O. |
| Outer Diameter | M12 |
| Rated power supply voltage | DC12/24V |
| Shape | Pre-wired connector |
| Type | Non-polar |
| Working Voltage Range | DC10 to 30V |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Wiring cost is reduced with a DC 2-wire system.Stable detection area indication with setting display.
Robust housing that can be highly tightened.
Indicator light that can be seen from anywhere.
The industry's smallest low current consumption. (Achieves 0.55mA)
High sealing performance. (IP67G)
The fastest response in the industry. (Achieves 2kHz)
