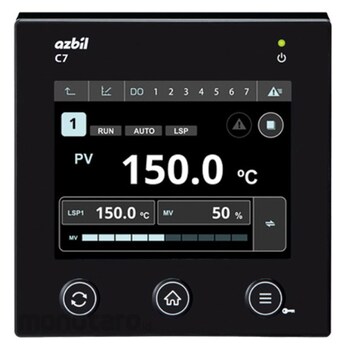

The graphical controller C7G is not only for PID control, but also as a function that contributes to preventive maintenance of manufacturing equipment whose needs have been increasing in recent years.
It is a digital controller equipped with a function to cut out and record process data and a function to calculate a health index from the cut out data by taking advantage of the features of the controller.
Azbil (Yamatake) Chiyotsutsukei
#Grup produk P112450117
Spesifikasi
| Accuracy | Monthly difference <± 140s |
|---|---|
| Ambient Humidity (% RH) | [Reference conditions] 60 ± 5, [Operating conditions] 10 to 90 |
| Ambient Temperature (°C) | [Standard conditions] 23 -2 / + 5, [Operating conditions] 0 to 50 ° C, 0 to 40 ° C (when two or more main units are closely attached), 0 to 50 ° C (display section) |
| Applicable Standard | EN61010-1, EN61326-1(For use in industrial locations) |
| Memory Backup | EEPROM (1 million writes or less) (for parameter setting) |
| Mounting | Body: DIN rail mounting or integrated bracket mounting (display unit integrated) |
| Offset Angle (°) | [Operating conditions] Reference plane ±10° (body), no limit (display) |
| Power Consumption | AC power model: 25 VA or less 10 W or less, DC power model: 12 W or less |
| Power Supply Voltage | [Standard conditions] AC power supply model: AC105V ± 10%, DC power supply model: DC24V ± 5% |
| Rated power supply voltage | [Operating conditions] AC power supply model: 100 to 240 VAC (operating input voltage: 85 to 264 VAC) DC power supply: 24 VDC (operating input voltage: 20.4 to 28.8 VDC) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
The graphical controller C7G is not only for PID control, but also as a function that contributes to preventive maintenance of manufacturing equipment whose needs have been increasing in recent years.It is a digital controller equipped with a function to cut out and record process data and a function to calculate a health index from the cut out data by taking advantage of the features of the controller.
