Stability and disturbance responsiveness are greatly improved by installing a new algorithm, high accuracy of ± 0.1% FS, and high-speed sampling cycle of 100ms.
A PC loader port is standard equipment on the front. PC loader supports SDC15 / 25/26/35/36. In addition to being able to easily set the controller, it has a full range of logging functions such as trends.
In addition to being equipped with 3 events as standard equipment, up to 3 analog outputs can be equipped.
Equipped with a large display and multifunction lamp. Various situations can be displayed at a glance.
Supports a variety of applications with abundant input / output such as position-proportional output
Equipped with "step operation" that can set the gradient and holding time for each of the 8 set values

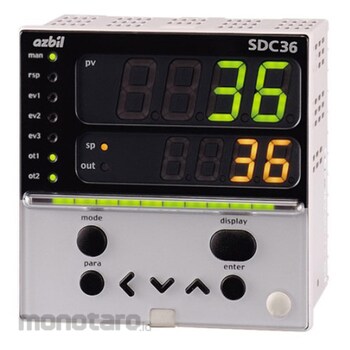

Azbil (Yamatake) Chiyotsutsukei
#Grup produk P112450038
Spesifikasi
| Analog Output | [Number of output points] Up to 3 points, [Output type] Select from process value (PV), set value (SP), control output (MV), etc. |
|---|---|
| Approvals | CE marking compliant product |
| Communication Protocol | RS-485 up to 31 |
| Communication Speed | Up to 38400bps |
| Control Output | [Control action] ON / OFF control, time proportional PID, current proportional PID, [PID group number], 8 groups, [PID auto-tuning] PID automatic setting by limit cycle method (Selectable from |
| Event Type | [Number of output points] Up to 3 points (8 internal points), [Event function] 31 types including process value, set value, deviation value, absolute deviation value, alarm, timer output, heater burnout alarm |
| Input | [Input type] Thermocouple, RTD, DC voltage, DC current, etc. [Sampling cycle] 0.1s |
| Instructions | [Indication method] Digital 4 digits, 7 segments, [Indication accuracy] ± 0.1% FS ± 1 digit |
| Mass (g) | 300 |
| Power Consumption (VA) | AC power model: 12 |
| Rated power supply voltage | AC power supply model: AC100-240 |
| Switch | [Number of input points] Up to 4 points, [Function] LSP number, PID group number, READY / RUN switching, timer start / stop, etc. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Stability and disturbance responsiveness are greatly improved by installing a new algorithm, high accuracy of ± 0.1% FS, and high-speed sampling cycle of 100ms.A PC loader port is standard equipment on the front. PC loader supports SDC15 / 25/26/35/36. In addition to being able to easily set the controller, it has a full range of logging functions such as trends.
In addition to being equipped with 3 events as standard equipment, up to 3 analog outputs can be equipped.
Equipped with a large display and multifunction lamp. Various situations can be displayed at a glance.
Supports a variety of applications with abundant input / output such as position-proportional output
Equipped with "step operation" that can set the gradient and holding time for each of the 8 set values
