Azbil (Yamatake) Chiyotsutsukei
#Grup produk P112449971
Spesifikasi
| Accuracy | Monthly difference <± 140s |
|---|---|
| Ambient Humidity (% RH) | [Reference conditions] 60 ± 5, [Operating conditions] 10 to 90 |
| Ambient Temperature (°C) | [Standard conditions] 23 -2 / + 5, [Operating conditions] 0 to 50 ° C, 0 to 40 ° C (when two or more main units are closely attached), 0 to 50 ° C (display section) |
| Applicable Standard | EN61010-1, EN61326-1(For use in industrial locations) |
| Memory Backup | EEPROM (1 million writes or less) (for parameter setting) |
| Mounting | Body: DIN rail mounting or integrated bracket mounting (display unit integrated) |
| Offset Angle (°) | [Operating conditions] Reference plane ±10° (body), no limit (display) |
| Power Consumption | AC power model: 25 VA or less 10 W or less, DC power model: 12 W or less |
| Power Supply Voltage | [Standard conditions] AC power supply model: AC105V ± 10%, DC power supply model: DC24V ± 5% |
| Rated power supply voltage | [Operating conditions] AC power supply model: 100 to 240 VAC (operating input voltage: 85 to 264 VAC) DC power supply: 24 VDC (operating input voltage: 20.4 to 28.8 VDC) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

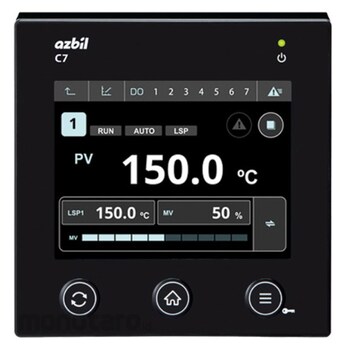

The C7G Graphical Controller is a digital controller that not only performs PID control, but also utilizes the controller's features to extract and record process data, and calculate a health index from the extracted data, contributing to preventive maintenance of manufacturing equipment, the needs of which have been growing in recent years. [Included] Traceability certificate + Working measuring instrument certificate - Standard instrument calibration certificate (Japanese)
Feature
The C7G Graphical Controller is a digital controller that not only performs PID control, but also utilizes the controller's features to extract and record process data, and calculate a health index from the extracted data, contributing to preventive maintenance of manufacturing equipment, the needs of which have been growing in recent years. [Included] Traceability certificate + Working measuring instrument certificate - Standard instrument calibration certificate (Japanese)Ulasan Produk
