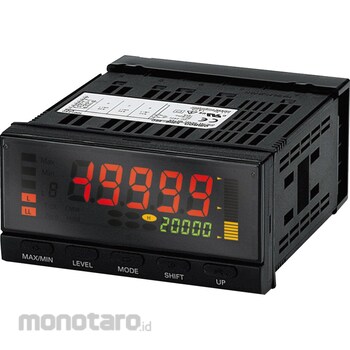

OMRON Voltage/Current Panel Meter K3HB-X
#Grup produk P112449315
Sebelum PPN:
Rp6.599.900 - Rp13.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Altitude (m) | 2000 or less |
|---|---|
| Ambient Humidity to Use (%RH) | 25~85 |
| Applicable Standard | UL61010-1, CSA C22.2 No.61010-1-04, EN61010-1 (IEC61010-1), Pollution Degree 2/Overvoltage Category II, EN61326-1 |
| Character Height (mm) | PV: 14.2 (green/red switching), SV: 4.9 (green) |
| Conversion System | Delta Sigma method |
| Digit Number of Display | 5-digit |
| Display Range | -19999~99999 |
| Included Accessories | Waterproof packing, 2 fixtures, terminal cover, unit seal, instruction manual |
| Insulation Resistance (MΩ) | 20 or more (at 500 VDC) |
| Noise resistance | Power supply terminal normal / common mode ± 1500V (square wave of rising 1ns, pulse width 1μs, 100ns) |
| Power Consumption (VA) | At maximum load: 18 or less |
| Power Supply Voltage (V) | AC100~240 |
| Protection Class | Front: NEMA4X indoor compliant (equivalent to IP66), rear case: IP20, terminal part: IP00 + finger protection (VDE0106/100) |
| Protective Function | Memory: EEPROM (nonvolatile memory) (100,000 writes) |
| Storage Temperature Range (°C) | -25 to +65 (with no icing or condensation) |
| Type of Display | Negative type LCD (backlight LED) display, 7-segment digital display |
| Type of Sign | Panel mounting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Two-color green / red display switching that shows the measurement display of analog quantities such as voltage and current signals, and the panel meter operation judgment that is optimal for discrimination.Equipped with a position meter that shows the tendency of driving conditions.
Expanded for versatile measurement and discrimination applications by inputting external events.
UL standard conformity certification (mark license certification)
Conforms to CE marking by third-party evaluation.
NEMA 4X compliant (equivalent to IP66) drip-proof structure.
