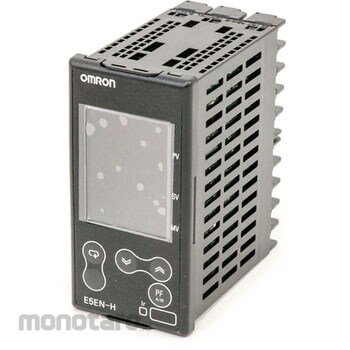

OMRON Thermac Neo Temperature Controller (Digital Controller High Performance Type) E5EN-H
#Grup produk P112448671
Sebelum PPN:
Rp7.099.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Voltage fluctuation | Range: 85% to 110% of power supply voltage |
|---|---|
| Character Height (mm) | PV : 11.8, SV : 8.1, MV : 5.8 |
| Control Mode | Standard or heating / cooling control |
| Dimensions (mm) | 48x96 |
| Input Impedance (ohm) | Current input 150 or less, voltage input 1M or more (When connecting ES2-HB, use 1: 1 connection.) |
| Number of Banks | 8 |
| Number of Outputs | 2 |
| Operating Temperature Range (°C) | -10 to 55 (no condensation or freezing) / 3-year warranty: -10 to 50 |
| Pattern Setting | Digital setting by front key or RSP input |
| Power Consumption (VA) | About 12 |
| Power Supply Voltage (V) | AC100~240 |
| Storage Temperature (°C) | -25 to 65 (no condensation or freezing) |
| Type | High performance type |
| Type of Display | 11-segment digital display and single light-emitting display (7-segment display also available), 3-row display Contents: PV/SV/MV, PV/SV/bank No. or remaining soak time, PV and SV are both 5 digits, MV is 4 digits |
| Type of Input | Thermocouple / RTD / Current / Voltage |
| Type of control | ON/OFF control/PID control with auto tuning |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
*The output unit method requires a separately sold output unit. Be sure to order both the output unit and the product as a set.For products for which delivery dates must be confirmed each time, a "tentative delivery date" is displayed because we need to confirm the delivery date, including production status, with our suppliers each time an order is placed.
After you place an order, we will confirm the delivery date with our supplier, and depending on the delivery date, we may ask you whether you wish to continue with the order.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
Highly decomposed 5-digit display / 0.01 ° C display is possible. All models have full multi-input (thermocouple / Pt / analog input switchable), and one unit supports various sensors.With the addition of the PV / SV status display function, the status of the temperature controller (auto / manual, RUN / STOP, alarm generation) can be displayed alternately with PV / SV in an easy-to-understand manner. Simpler than the support software (CX-Thermo Ver.4.0). Flexible contact output is possible by setting the calculation function (AND / OR logic and delay). With the addition of the control output ON / OFF count function, failure prediction of the temperature control internal relay is possible.
