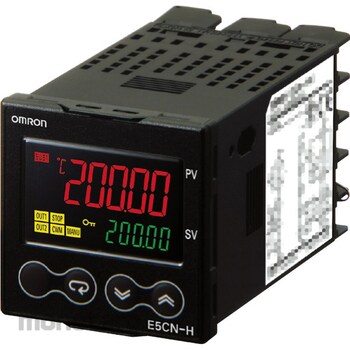

OMRON Thermac Neo Temperature Controller (Digital Controller High Performance Type) E5CN-H
#Grup produk P112448653
Sebelum PPN:
Rp5.999.900 - Rp9.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Humidity to Use (%RH) | 25-85 relative humidity |
|---|---|
| Applicable Standard | EN61010-1 (IEC61010-1): Pollution Degree 2, Overvoltage Category II, Lloyd Standard |
| Character Height (mm) | PV : 11, SV : 6.5 |
| Dimensions (mm) | 48x48 |
| Input Impedance (ohm) | Current input 150 or less, voltage input 1M or more (When connecting ES2-HB, use 1: 1 connection.) |
| Insulation Resistance (MΩ) | 20 or more (DC500V applied) |
| Memory | Non-volatile memory (Number of writes: 1 million times) |
| Operating Temperature Range (°C) | -10 to 55 (no condensation or freezing) / 3-year warranty: -10 to 50 |
| Pattern Setting | Digital setting with front keys |
| Power Supply Voltage (V) | AC100~240 (50/60Hz) |
| Protection Class | Front: IP66, Rear case: IP20, Terminal part: IP00 |
| Sensitivity | (Adjustment); Temperature input: 0.1 to 3240.0°C or°F (in 0.1°C or°F units); Analog input: 0.01 to 99.99% FS (in 0.01% FS units) |
| Standard | Certification Standards; UL61010-1, CSA C22.2 No.1010-1 |
| Storage Temperature (°C) | -25 to 65 (no condensation or freezing) |
| Storage Temperature Range (°C) | -25 to +65 (with no condensation or icing) |
| Type | Terminal block type |
| Type of Display | 11-segment digital display and single emission display (7-segment display is also possible) |
| Type of Input | Thermocouple / RTD / Current / Voltage |
| Type of control | ON/OFF control/PID control with auto tuning |
