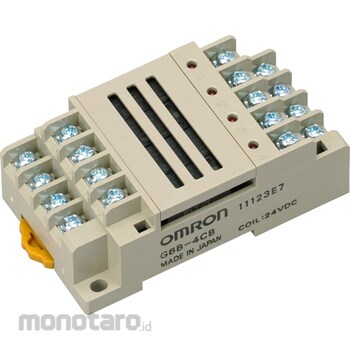

OMRON Terminal Relay G6B-4CB
#Grup produk P112448574
Spesifikasi
| Ambient Humidity to Use (%RH) | 45~85 |
|---|---|
| Contact Configuration | 1cx4 |
| Contact Resistance (miliΩ) | 100 or less (5VDC 1A per relay) |
| Electrical Durability | 100,000 times or more (rated load, switching frequency 1800 times / h) (per relay, switching frequency 120 times / min) |
| Insulation Resistance (MΩ) | 1000 or more (per relay point at 500 VDC) |
| Maximum Contact Voltage (V) | Resistive load (cosΦ = 1): AC250, DC125; Inductive load (cosΦ = 0.4 L / R = 7ms): AC250, DC125; Per relay |
| Maximum Permissible Voltage (V) | 110% (per relay) |
| Mechanical Durability | 50 million times or more (opening / closing frequency 18000 times / h) (per relay) |
| Operating Time (ms) | 10 or less (per relay, + 23°C) |
| Operating Voltage | 80% or less (per relay, ambient temperature + 23°C) |
| Power Consumption (mW) | Approx. 300 (per relay) |
| Resistive load | (cosΦ=1) : AC250V 5A, DC30V 5A |
| Return Voltage | 10% or more (per relay) |
| Shock Resistance Malfunction (m/s²) | 100 (per relay) |
| Storage Temperature Range (°C) | -25 to +55 (no icing) |
| Terminal Shape | Screw terminal |
| Type | Terminal relay |
| Type of Terminal Fitting | For both DIN rail mounting and screw mounting |
| Vibration Resistance (Destruction) Frequency (Hz) | 10 to 55 to 10, Single amplitude 0.75mm (Double amplitude 1.5mm) (per relay) |
| Vibration Resistance (Malfunction) Frequency (Hz) | 10 to 55 to 10, Single amplitude 0.75mm (Double amplitude 1.5mm) (per relay) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Equipped with 4 types G6B-2114P-US Coil surge absorption diode with LED for operation display Dedicated socket for easy replacement of relayCommon for DIN rail mounting and screw mounting
