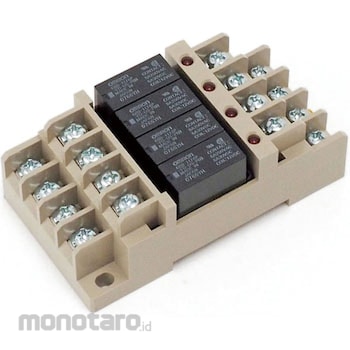

OMRON Terminal Relay G6b-4
#Grup produk P112448556
Spesifikasi
| Contact Resistance (miliΩ) | 100 or less (5VDC 1A per relay) |
|---|---|
| Insulation Resistance (MΩ) | 1000 or more (per relay point at 500 VDC) |
| Maximum Contact Voltage (V) | Resistive load (cosΦ=1): AC380, DC125/Inductive load (cosΦ=0.4 L/R=7ms): AC380, DC125 [per relay point] |
| Maximum Permissible Voltage (V) | 130% (per relay) [Maximum value of allowable voltage fluctuation range of relay coil operating power supply] |
| Mechanical Durability | 50 million times or more (opening / closing frequency 18000 times / h) (per relay) |
| Operating Temperature Range (°C) | -25 to 55 (no condensation or freezing) |
| Operating Time (ms) | 10 or less (actual value: approx. 3) (per relay, 23°C) |
| Power Consumption (mW) | Approx. 200 (per relay) |
| Return Time (ms) | 15 or less (actual value: approx. 4) (per relay, ambient temperature 23°C) |
| Return Voltage | 10% or more (per relay) |
| Storage Temperature (°C) | -25 to 65 (no condensation or freezing) |
| Terminal Shape | Screw terminal |
| Type | Terminal relay |
| Type of Sign | DIN rail mounting and screw mounting |
| Type of Terminal Fitting | For both DIN rail mounting and screw mounting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
For products whose delivery date is confirmed each time, we display a [tentative delivery date] because we need to confirm the delivery date with the supplier each time you place an order, including the production status.After placing your order, we will confirm the delivery date with the supplier, and depending on the number of delivery days, we may ask you if you would like to continue making arrangements.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
Equipped with 4 compact, highly sensitive, high voltage 5A power switching G6B mini relays The relay body has a plastic seal structure The terminals have a separate IN/OUT structure, making wiring easy Therefore, relay replacement is easy (excluding high reliability models).Standard type, UL and CSA standard certified product (high reliability models excluded). G6B-4BND/47BND/48BND DC12/24V is VDE standard certified. DIN rail mounting and screw mounting types are also available.Ulasan Produk
