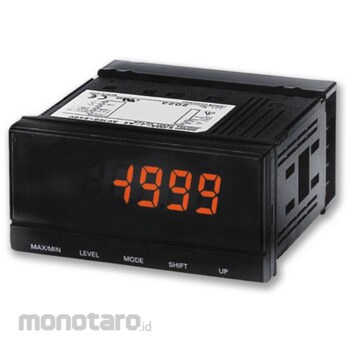

OMRON Temperature Indicator/Indicator Alarm K3MA-L
#Grup produk P112448334
Sebelum PPN:
Rp4.599.900 - Rp5.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Humidity to Use (%RH) | 25 to 85 (with no condensation) |
|---|---|
| Applicable Standard | UL3121-1, EN61010-1 (IEC61010-1): Pollution degree 2 / Overvoltage category II |
| Character Height (mm) | 14.2 |
| Digit Number of Display | 4 digits |
| Display | Zero: Zero digit suppression |
| Display Range | -1999~9999 |
| Display update cycle | Sampling cycle (sampling cycle x average count when using the averaging function) |
| Input Method | Temperature (Platinum resistance thermometer/thermocouple) |
| Input Signal | Thermocouple: K, J, T, E, L, U, N, R, S, B ; Platinum resistance thermometer: JPt100, Pt100 |
| Insulation Resistance (MΩ) | 20 or more (at 500 VDC) ; Between all external terminals and case, between input-output-power supply |
| Method | Measurement: Double integration method |
| Noise resistance | Power supply terminal Normal/common mode ±1500V, rising 1ns square wave ±1μs, 100ns |
| Number of Digits | 4 digits (-1999 to 9999) |
| Power Consumption (VA) | At maximum load: 6 or less |
| Power Input (V) | AC100~240 (50/60Hz) |
| Power Supply Voltage (V) | AC100~240 |
| Protection Class | Front: NEMA4X indoor compliant (equivalent to IP66), rear case: IP20, terminal part: IP00 + finger protection (VDE0106/100) |
| Protective Function | Memory: Non-volatile memory (number of writes 100,000 times) |
| Response Time | Comparative output: 1000 ms or less |
| Sampling Cycle (ms) | 500 |
| Storage Temperature Range (°C) | -25 to +65 (with no condensation or icing) |
| Type of Display | 7-segment digital display |
| Type of Input | Platinum resistance thermometer/thermocouple |
| Type of Sign | Panel mounting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Achieves high visibility with a negative LCD display with 2-color LED (red / green) backlight. Wide range of resistance temperature detectors (2 types) and thermocouples (10 types).Easy setting by front key operation.
Equipped with an averaging processing function that suppresses flicker.
Equipped with temperature shift function and temperature unit switching function.
You can check the MAX / MIN display.
Short body size with a depth (under the neck) of 80 mm.
Equipped with a terminal cover to prevent electric shock as standard equipment.
The front part has a waterproof and dustproof structure that conforms to the protective structure NEMA 4X (equivalent to IP66).
UL standard conformity certification (mark license certification)
Conforms to CE marking
