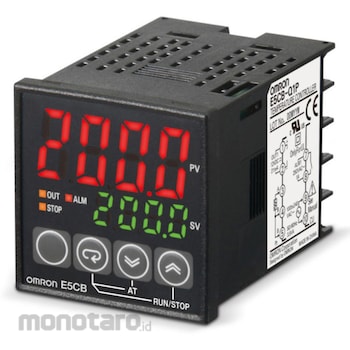

OMRON Temperature Controller Thermac E5CB Series
#Grup produk P112448316
Spesifikasi
| Alarm Output | Relay output AC250V 1A (resistance load) |
|---|---|
| Alarm setting value | -1999 to 9999 (Decimal point position depends on input type) |
| Allowable Voltage fluctuation | Range: 85% to 110% of rated voltage |
| Ambient Humidity to Use (%RH) | 25-85 relative humidity |
| Character Height (mm) | PV/16.2, SV/7.8 |
| Control Output | Voltage output (for SSR drive) |
| Control cycle | 0.5, 1 to 99s (1s unit) |
| Dimensions (mm) | 48x48 |
| Display | LED |
| Function | Temperature input correction, run / stop, protection function, etc. |
| Indication accuracy | (± 0.5% of indicated value or ± 1°C, whichever is greater) ± 1 digit or less, K and T of -100°C or less are ± 2°C ± 1 digit or less. R, S 200°C or less is ± 3°C ± 1 digit or less. |
| Influence of Temperature | Thermocouple input (R, S): (± 1% PV or ± 10°C, whichever is greater) ± 1 digit or less, Thermocouple input (K, J, T): (± 1% PV or ± 4°C, whichever is greater) ) ± 1 digit or less |
| Influence of Voltage | Thermocouple input (R, S): (± 1% PV or ± 10°C, whichever is greater) ± 1 digit or less, Thermocouple input (K, J, T): (± 1% PV or ± 4°C, whichever is greater) ) ± 1 digit or less |
| Insulation Resistance (MΩ) | 20 or more (at 500 VDC) |
| Operating Temperature Range (°C) | -10 to 55 (no condensation or freezing) / 3-year warranty: -10 to 50 |
| Pattern Setting | Digital setting with front keys |
| Power Consumption (VA) | About 3.5 |
| Power Supply Voltage (V) | AC100~240 |
| Proportional Band (P) (°C/°F) | 0.1 to 999.9 (in units of 0.1°C or °F) |
| Protection Class | Front: IP66, Rear case: IP20, Terminal part: IP00 |
| Sensitivity | Adjustable sensitivity / 0.1 to 999.9°C or ° F (0.1°C or ° F unit) |
| Series | E5CB |
| Storage Temperature (°C) | -25 to 65 (no condensation or freezing) |
| Storage Temperature Range (°C) | -25 to +65 (with no condensation or icing) |
| Type of Display | 7-segment digital display and single emission display |
| Type of Input | thermocouple |
| Type of control | ON/OFF control/PID control with auto tuning |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Stable temperature control is achieved with the same control performance as the E5□N series. Furthermore, it can be installed closely together, improving the freedom of panel design. Character height of approximately 16 mm improves visibility. Neck dimension of 60 mm reduces the depth of the control panel. Fewer parameters make setup easy. The minimum settings required for heater control are sufficient. Press the W key even for PID control to start AT (auto-tuning) immediately. The base model 8 specifications with temperature control + 1 alarm point significantly reduce setup time. Highly reliable 3-year warranty Sampling cycle 250 msUlasan Produk
