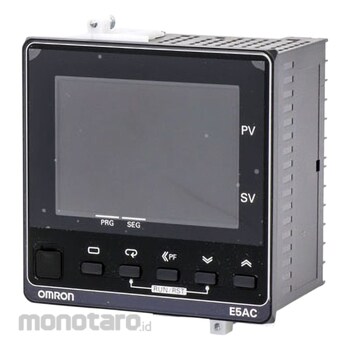

OMRON Temperature Controller (Digital Controller) Program Type E5AC-T
#Grup produk P112448194
Sebelum PPN:
Rp7.899.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Voltage fluctuation | Range: 85% to 110% of power supply voltage |
|---|---|
| Altitude (m) | 2000 or less |
| Ambient Humidity to Use (%RH) | 25-85 relative humidity |
| Applicable Standard | EN 61010-1(IEC 61010-1), RCM |
| Character Height (mm) | PV : 25, SV : 15, MV : 9.5 |
| Input Impedance (ohm) | Current input 150 or less, voltage input 1M or more (When connecting ES2-HB-N/THB-N, use a 1:1 connection.) |
| Installation Altitude (m) | 2000 or less |
| Insulation Resistance (MΩ) | 20 or more (DC500V applied) |
| Memory | Non-volatile memory (Number of writes: 1 million times) |
| Operating Temperature Range (°C) | -10 to 55 (no condensation or freezing) / 3-year warranty: -10 to 50 (no condensation or freezing) when installed as standard |
| Power Consumption (VA) | 9 or less |
| Power Supply Voltage (V) | AC100~240 (50/60Hz) |
| Protection Class | Front: IP66, Rear case: IP20, Terminal part: IP00 |
| Shape | DIN96x96 |
| Standard | [Certification standard] cULus: UL 61010-1/CSA C22.2 No.61010-1, Korea Radio Regulations (Radio Act: KC mark) (some models only) |
| Storage Temperature (°C) | -25 to 65 (no condensation or freezing) |
| Terminal Shape | Screw terminal block |
| Type of Display | 11-segment digital display and single light-emitting display. Contents: PV/SP/program number, segment number, remaining time in segment, operation amount (valve opening), number of digits: 4 digits |
| Type of Input | Thermocouple / resistance temperature detector / sensor / current / voltage |
| Type of control | ON/OFF or 2 degrees of freedom PID (with auto tuning) |
