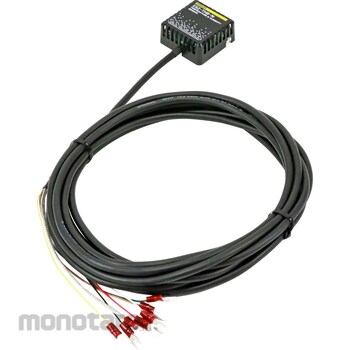

OMRON Temperature And Humidity Sensor ES2-HB-N/THB-N
#Grup produk P112447812
Spesifikasi
| Allowable Voltage fluctuation | 85 ~ 110% of power supply voltage |
|---|---|
| Ambient Humidity (%RH) | Storage: Relative humidity below 95 |
| Cable Length (m) | (Transmission) 5 |
| Current Consumption (mA) | less than 4 |
| Humidity Measurement Accuracy | ±3%(25°C, 40~80%) |
| Humidity Measurement Range (%) | 20~95 |
| Humidity Sensor | Polymer resistance type |
| JIS Class | JIS Class B (Class B) |
| Operating Humidity Range (%RH) | 95 or less relative humidity |
| Output | Humidity/DC1 to 5V (for humidity 0 to 100%), load impedance 100kΩ or more (When connecting E5CC/E5EC/E5AC series, use a 1:1 connection.); Temperature output: Pt100: 3 wire type |
| Power Supply Voltage (V) | DC24 (humidity sensor part) |
| Protection Class | IP20 |
| Storage Temperature Range (°C) | -20~+60 |
| Temperature Measurement Range (°C) | 0~55 |
| Temperature Sensor | Platinum resistance thermometer |
| Type | Temperature and humidity sensor |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* The humidity sensor module (ES2-MN type) is a replacement. One is attached to ES2-HB-N / -THB-N.* Be sure to attach the attached humidity sensor module when using. If the module is not installed or is not installed properly, the humidity output will be about 5.5V DC.
Feature
Achieves ± 3% humidity detection accuracy in spite of its compact size. Demonstrates its power in humidity / temperature / humidity control as a set with a controller Adopts a highly durable polymer resistance type sensor.Compact and lightweight.
