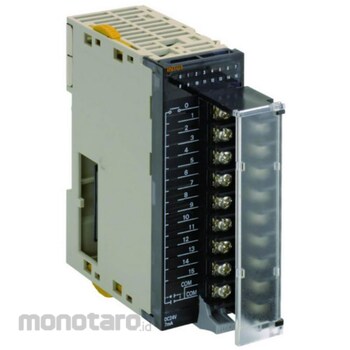

OMRON SYSMAC CJ Series Interrupt Input Unit
#Grup produk P112447672
Spesifikasi
| Applicable Standard | cULus (Class I Div2 Hazardous Location Certified Product), NK, Lloyd, EC Directive |
|---|---|
| Common Specifications | 16 points, 1 common |
| Current (mA) | (ON) 3 or more, (OFF) 1 or less |
| Current Consumption (A) | 80 or less (DC5V) |
| External Connection | Detachable terminal block |
| Input Current (mA) | 7(DC24V) |
| Input Impedance (ohm) | 3.3k |
| Input Voltage Tolerance (V) | DC20.4~26.4 |
| Insulation Resistance (MΩ) | 20 / External terminals and GR terminal (at 100 VDC) |
| Maximum number of connections | (Can be installed) 2 units |
| Number of Circuits | 16 points (16 points / common 1 circuit) |
| Number of Input Points | (I / O) 16 points |
| Occupied In/Out Points | 1CH |
| Pulse Width | Input condition / (ON time) 0.05 ms or less, (OFF time) 0.5 ms or less |
| Rated Input Voltage (V) | DC24 |
| Response Time (ms) | (ON) 0.05 or less, (OFF) 0.5 or less |
| Simultaneous On Points | 100% (16 points / common) simultaneously ON (at 24 VDC) |
| Voltage (V) | (ON) DC 14.4 or more, (OFF) DC 5 or less |
| Withstand Voltage | 1000V AC for 1 minute between external terminals and GR terminal Leakage current 10mA or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Fast response, up to 2 units, 32 I / O interrupt tasks can be started.Accepts input to launch an I / O interrupt task. When an input is input to this unit, the CPU unit interrupts the execution of the cycle execution task (normal program) and executes the I / O interrupt task.
