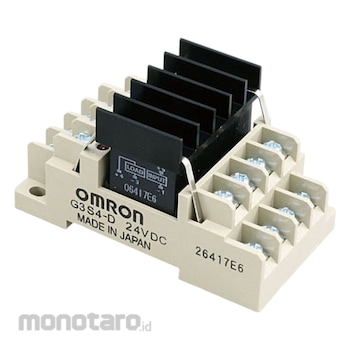

OMRON SSR G3S4 Terminal
#Grup produk P112447238
Spesifikasi
| Coil Rated Voltage (V) | DC24 |
|---|---|
| Contact Configuration | 1ax4 |
| Input Impedance (ohm) | 2.3k±20% |
| Insulation Resistance (MΩ) | 100 or more (with DC 500V mega) |
| Leakage Current (mA) | 0.1 or less (at DC 26V) |
| Operating Ambient Humidity (%RH) | 45~85 |
| Operating Voltage (V) | DC 19.2 or less |
| Operating Voltage Range (V) | DC19.2~28.8 |
| Rated Voltage (V) | DC24 |
| Relay | (Installed solid state relay) G3SD-Z01P-PD |
| Return Time (ms) | 1 or less |
| Return Voltage (V) | DC1 or more |
| Shock Resistance (m/s²) | 1000 |
| Storage Temperature (°C) | -30 to +100 (with no icing or condensation) |
| Suitable Load of Output | 1A, DC 3~26V |
| Type | Terminal relay |
| Vibration Resistance (Hz) | 10~55~10, single amplitude 0.75 mm (double amplitude 1.5 mm) |
| Voltage Drop when Output Turned ON | 1.5V or less |
| Withstand Voltage (V/minute) | AC 2000 50/60Hz |
| Zero Cross Function | None |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
For products whose delivery date is confirmed each time, we display a [tentative delivery date] because we need to confirm the delivery date with the supplier each time you place an order, including the production status.After placing your order, we will confirm the delivery date with the supplier, and depending on the number of delivery days, we may ask you if you would like to continue making arrangements.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
A collection of SSRs with an easy-to-use structure that integrates a small SSR (G3S, 4 installed), a socket, and a heatsink.The terminals have a separate IN/OUT structure, making wiring easy.The dedicated socket has an operation indicator LED, making it easy to replace the relay. Easy DIN rail mounting and screw mounting commonUlasan Produk
