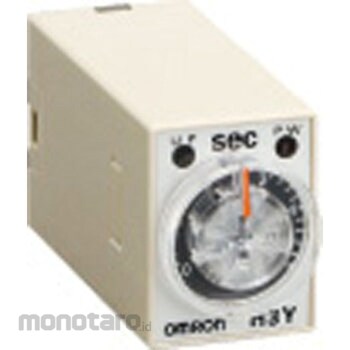

OMRON Solid State Timer H3Y-B
#Grup produk P112446992
Spesifikasi
| Ambient Humidity to Use (%RH) | 35~85 |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (measured with DC500V mega) |
| Noise resistance | Square wave noise by noise simulator (pulse width 100ns / 1μs rising 1ns) ± 1.5kV |
| Operating Time Variation | ± 1% or less (at maximum scale time) |
| Outer Dimensions (WxDxH) (mm) | 21.5 or less x 63 x 28 or less |
| Protection Class | IP40 |
| Return Voltage | 10% or more of power supply voltage |
| Static Resistance (kV) | 4 (malfunction), 8 (destruction) |
| Storage Temperature (°C) | -25~+65 (no freezing) |
| Type | Monofunction timer |
| Type of Terminal | Plug-in terminal |
| Vibration Resistance (Destruction) Frequency (Hz) | 10 to 55, single amplitude 0.75mm, 3 directions, 1h each |
| Vibration Resistance (Malfunction) Frequency (Hz) | 10~55, single amplitude 0.5 mm, 3 directions, 10 min each |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
*Do not use the inverter output as a power source.For products for which delivery dates must be confirmed each time, a "tentative delivery date" is displayed because we need to confirm the delivery date, including production status, with our suppliers each time an order is placed.
After you place an order, we will confirm the delivery date with our supplier, and depending on the delivery date, we may ask you whether you wish to continue with the order.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
UL-Listed acquisition with ultra-small timer push-in Plus terminal block socket for sequence control. * In combination with push-in Plus terminal block socket (type PYF- □ -PU-L).It also supports CSA, CE mark, CCC, and LR.
With a black design, the power supply terminal is located at the top and the contact output terminal is located at the bottom.
+ -Easy time setting with a large knob shared by the driver.
Achieves semi-multi power supply voltage.
