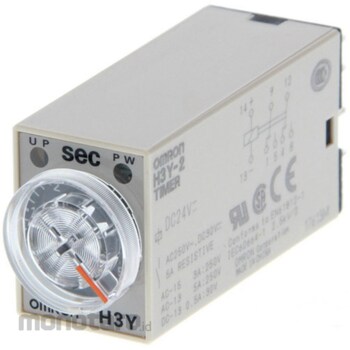

OMRON Solid State Timer H3Y-2
#Grup produk P112446974
Spesifikasi
| Ambient Humidity to Use (%RH) | 35~85 |
|---|---|
| Control Output | AC250V 5A resistive load (cosΦ = 1), minimum applicable load: DC5V 1mA (P level, reference value) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Noise resistance | Square wave noise by noise simulator (pulse width 100ns / 1μs rising 1ns) ± 1.5kV |
| Number of Pins | 8 |
| Operating Temperature Range (°C) | -10 to 50 (no condensation or freezing) |
| Outer Dimensions (WxDxH) (mm) | 21.5 or less x 63 x 28 or less |
| Protection Class | IP40 |
| Return Voltage | 10% or more of power supply voltage |
| Safety Standard | UL 508, CSA C22.2 No.14, LR certified, CCC: GB/T 14048.5, EN 61812-1, IEC 60664-1 2.5kV/2 compliant |
| Static Resistance (kV) | 4 (malfunction), 8 (destruction) |
| Storage Temperature (°C) | -25 to 65 (no condensation or freezing) |
| Timed Contacts | 2c |
| Type | Monofunction timer |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
An ultra-compact timer for sequence control with a built-in dedicated IC.High accuracy with repetition error of ± 1%. (Including initial value)
Easy time setting with large knobs shared by plus, minus, and driver.
Achieves semi-multi power supply voltage.
Obtained UL and CSA standards as a standard product. Compliant with EN61812-1 and compatible with CE mark.
