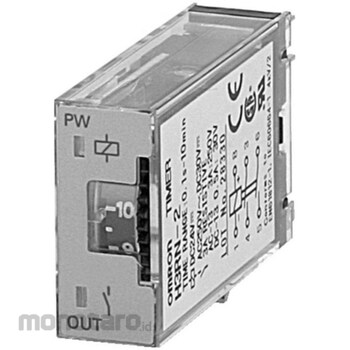

OMRON Solid State Timer H3RN
#Grup produk P112446910
Spesifikasi
| Ambient Humidity to Use (%RH) | 35~85 |
|---|---|
| Control Output | AC250V 3A Resistive load (cosΦ=1) (using G6B-2□14P-FD-US) Minimum applicable load: DC5V 10mA (P level, reference value) |
| Dimensions (mm) | 46x12.8x28.8 |
| Impulse Voltage (V) | Between power terminals: 1k |
| Influence of Temperature | ± 2% or less (at maximum scale time) |
| Influence of Voltage | ± 2% or less (at maximum scale time) |
| Insulation Resistance (MΩ) | 100 or more (measured with DC500V mega) |
| Operating Temperature Range (°C) | -10 to 55 (no condensation or freezing) |
| Operating Time Variation | ±1% or less (at maximum scale time), (±1% ±10ms or less for 1s range) |
| Operation Mode | Switch between 4 modes of on-delay, interval, flicker off start, flicker on start with DIP switch |
| Protection Class | IP40 (excluding terminals) |
| Return Voltage | 10% or less of power supply voltage |
| Series | H3RN |
| Setting Error | ± 15% ± 50 ms or less (at maximum scale time) |
| Shock Resistance Malfunction (m/s²) | 100 6 directions 3 times each |
| Static Resistance (kV) | 4 (malfunction); 8 (destruction) |
| Storage Temperature (°C) | -25 to 65 (no condensation or freezing) |
| Vibration Resistance (Hz) | 10 to 55, single amplitude 0.75mm, 3 directions, 1h each (durability)/10 to 55, single amplitude 0.5mm, 3 directions, 10min each (malfunction) |
| Withstand Voltage (V/minute) | AC2000 50/60Hz (between operating power circuit and control output, and between contacts of different polarities), AC1000 50/60Hz (between non-continuous contacts) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
*The H3RN does not come with a connection socket. *When using continuously at an ambient temperature of 50°C or higher, use with a power supply voltage of 90 to 110% (95 to 110% for DC12V).For products for which delivery dates must be confirmed each time, a "tentative delivery date" is displayed because we need to confirm the delivery date, including production status, with our suppliers each time an order is placed.
After you place an order, we will confirm the delivery date with our supplier, and depending on the delivery date, we may ask you whether you wish to continue with the order.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
Realizes multiple time ranges and operation modes. Small and thin size that contributes to space saving. Obtained UL and CSA standards. Conforms to EN61812-1 and CE mark.Ulasan Produk
