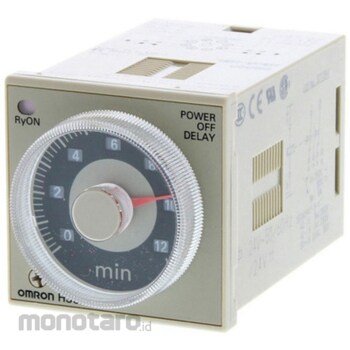

OMRON Solid State Timer H3CR-H
#Grup produk P112446859
Sebelum PPN:
Rp1.599.900 - Rp1.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Humidity to Use (%RH) | 35~85 |
|---|---|
| Influence of Temperature | ± 1% (percentage of maximum scale) or less (± 1% ± 10ms or less for 0.6 and 1.2s ranges) |
| Influence of Voltage | ± 0.2% (percentage of maximum scale) or less (± 0.2% ± 10ms or less for 0.6 and 1.2s ranges) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Noise resistance | Square wave noise by noise simulator (pulse width 100ns / 1μs rising 1ns) ± 1.5kV (between power supply terminals) |
| Operating Temperature Range (°C) | -10 to 55 (no condensation or freezing) |
| Operating Time Variation | ± 0.2% (percentage of maximum scale) or less (± 0.2% ± 10ms or less for 0.6 and 1.2s ranges) |
| Outer Dimensions (WxDxH) (mm) | 48x93x48 |
| Protection Class | IP40 (panel surface) |
| Scale Format | 4-step switching type/0.6, 1.2, 6, 12 |
| Storage Temperature (°C) | -25 to 65 (no condensation or freezing) |
| Storage Temperature Range (°C) | -25~+65 (no freezing) |
| Time Setting | Scale numbers: (time units) 0.6: 0.05 to 0.6 seconds, 1: 0.12 to 1.2 seconds, 6: 0.6 to 6 seconds, 12: 1.2 to 12 seconds |
| Type | Power off delay timer |
| Type of Sign | Recessed mounting / surface mounting |
| Type of Terminal Fitting | Recessed mounting / surface mounting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
*If the power is turned on for less than 2 seconds, the device may not function properly, so be sure to turn the power on for at least the specified time. Do not use the device for a repetition period of less than 3 seconds. This may cause abnormal heat generation or burning.For products for which delivery dates must be confirmed each time, a "tentative delivery date" is displayed because we need to confirm the delivery date, including production status, with our suppliers each time an order is placed.
After you place an order, we will confirm the delivery date with our supplier, and depending on the delivery date, we may ask you whether you wish to continue with the order.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
Improved resistance to power waveform distortion. Obtained UL, CSA, LR, NK certification. Safety design compliant with EN61812-1. Compatible with CE mark. Four time ranges can be selected from 0.05 seconds to 12 seconds for the S series and 0.05 minutes to 12 minutes for the M series.Ulasan Produk
