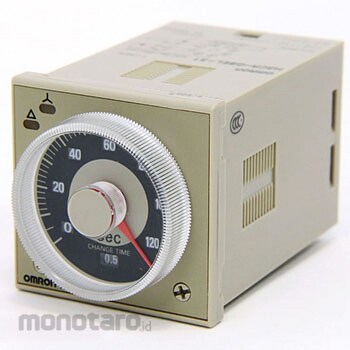

OMRON Solid State Timer H3CR-G
#Grup produk P112446831
Sebelum PPN:
Rp1.099.900 - Rp1.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Adjustable Time | Scale numbers ; 6: 0.5-6s ; 12: 1 ~ 12s ; 60: 5-60s ; 120: 10 ~ 120s |
|---|---|
| Allowable Voltage Range (V) | 85 ~ 110% of power supply voltage |
| Ambient Humidity to Use (%RH) | 35~85 |
| Control Output | Contact output: AC250V / DC30V 5A ; Resistance load (cosΦ = 1) ; Minimum applicable load: DC5V 10mA (P level, reference value) |
| Influence of Temperature | ± 1% (ratio to the maximum scale value) or less |
| Influence of Voltage | ± 0.2% (ratio to maximum scale) or less |
| Maximum Setting Time of Graduation | 120s |
| Noise resistance | Square wave noise by noise simulator (pulse width 100ns / 1μs rising 1ns) ± 1.5kV (between power supply terminals) |
| Operating Temperature Range (°C) | -10 to +55 (no icing) |
| Outer Dimensions (WxDxH) (mm) | 48x93x48 |
| Pin Type | 8 |
| Protection Class | IP40 (panel surface) |
| Scale Format | Select from 2 types, 4 stages, 6, 12, 60, 120 |
| Storage Temperature Range (°C) | -25 to +65 (no icing) |
| Time Axis Range | Seconds only |
| Type | Star delta timer |
| Type of Operation | Timed operation |
| Type of Terminal Fitting | Recessed mounting / surface mounting |
| Vibration Resistance (Destruction) Frequency (Hz) | 10~55, single amplitude 0.75mm, 3 directions, 2h each |
| Withstand Voltage | 2000 VAC 50/60 Hz for 1 min (between charged metal parts and non-charged metal parts) 2000 VAC 50/60 Hz for 1 min (between control output and operation circuit) 2000 VAC 50/60 Hz for 1 min (between different contacts) ) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Do not use the output of the inverter as a power source.* Because there is an inrush current, care must be taken when opening and closing the power supply of the timer body with non-contact output such as a sensor.
* Type H3CR-G8L-30 / -G8EL-31 has not acquired the safety standard.
Feature
Improved resistance to radio wave waveform distortion.UL, CSA, LR, NK acquisition, EN61812-1 compliant safety design.
Compatible with CE mark.
Four types of time range can be selected from 0.5 seconds to 120 seconds with one unit.
