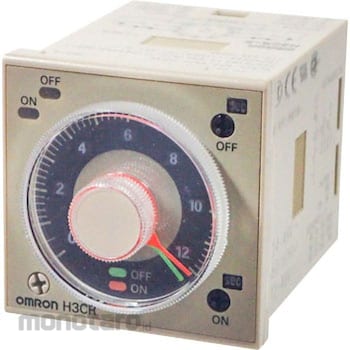

OMRON Solid State Timer H3CR-F
#Grup produk P112446813
Spesifikasi
| Adjustable Time | 0.05s~30h |
|---|---|
| Ambient Humidity to Use (%RH) | 35~85 |
| Control Output | Contact output: AC250V/DC30V 5A, resistive load (cosΦ=1), minimum applicable load: DC5V 10mA (P level, reference value) |
| Influence of Temperature | ±1% (percentage of maximum scale value) or less (±1% ±10ms or less for 1.2s and 3s ranges) |
| Influence of Voltage | ± 0.2% (percentage of maximum scale) or less (± 0.2% ± 10ms or less for 1.2s and 3s ranges) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Noise resistance | Square wave noise by noise simulator (pulse width 100ns / 1μs rising 1ns) ± 1.5kV (between power supply terminals) |
| Operating Temperature Range (°C) | -10 to 55 (no condensation or freezing) |
| Operating Time Variation | ± 0.2% (percentage of maximum scale) or less (± 0.2% ± 10ms or less for 1.2s and 3s ranges) |
| Outer Dimensions (WxDxH) (mm) | 48x84x48 |
| Pin Type | 11 |
| Power Consumption (W) | Relay ON: Approx. 0.8 / Relay OFF: Approx. 0.2 (at DC24V) |
| Power Reset | Minimum power open time: 0.1s |
| Power Supply Voltage (V) | AC/D24 50/60Hz |
| Protection Class | IP40 (panel surface) |
| Rated power supply voltage | AC24-48V 50/60 Hz DC12-48V ripple 20% or less (can be used with single-phase full-wave rectified power supplies) |
| Return Voltage | 10% or less of power supply voltage |
| Scale Format | 4-step switching type/Select from 1.2, 3, 12, 30/ON time and OFF time are the same |
| Storage Temperature (°C) | -25 to 65 (no condensation or freezing) |
| Storage Temperature Range (°C) | -25~+65 (no freezing) |
| Terminal Shape | Plug-in terminal |
| Type | Twin timer |
| Type of Sign | Recessed mounting / surface mounting |
| Type of Terminal Fitting | Recessed mounting / surface mounting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Do not use the output of the inverter as a power source.* Because there is an inrush current, care must be taken when opening and closing the power supply of the timer body with non-contact output such as a sensor.
Feature
Improved resistance to waveform distortion of the power supply.Obtained UL, CSA, LR and NK.
EN61812-1 compliant safety design.
Compatible with CE mark.
14 types of time range can be selected from 0.05 seconds to 30 hours.
0 setting Instant output is possible. Since the scale is turned all the way in the 0 direction to output instantly, it is easy to check the sequence operation.
