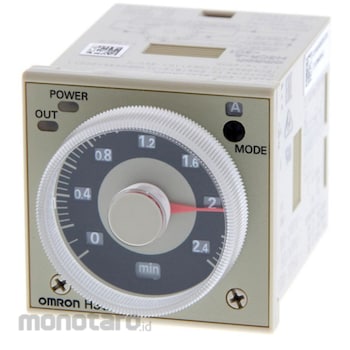

OMRON Solid State Timer H3CR-A series
#Grup produk P112446798
Spesifikasi
| Ambient Humidity to Use (%RH) | 35~85 |
|---|---|
| Influence of Temperature | ±1% or less (percentage of maximum scale) or less (±1% ±10ms or less for 1.2s and 3s ranges) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Noise resistance | Square wave noise by noise simulator (pulse width 100ns/1μs rise time 1ns) ±1.5kV, but ±600V between non-voltage input terminals |
| Operating Temperature Range (°C) | -10 to 55 (no condensation or freezing) |
| Operating Time Variation | ±0.2% or less (percentage of maximum scale) or less (±0.2% ±10ms or less for 1.2s and 3s ranges) |
| Power Reset | Minimum power open time: 0.1s |
| Protection Class | IP40 (panel surface) |
| Return Time (s) | 0.1 or less |
| Return Voltage | 10% or less of power supply voltage |
| Storage Temperature (°C) | -25 to 65 (no condensation or freezing) |
| Storage Temperature Range (°C) | -25~+65 (no freezing) |
| Time Axis Range | 6-stage switching type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
*Do not use the inverter output as a power source. *Because of the inrush current, care must be taken when turning the timer main unit on and off using a non-contact output such as a sensor.For products for which delivery dates must be confirmed each time, a "tentative delivery date" is displayed because we need to confirm the delivery date, including production status, with our suppliers each time an order is placed.
After you place an order, we will confirm the delivery date with our supplier, and depending on the delivery date, we may ask you whether you wish to continue with the order.
Please check the details in the information you will receive from the manufacturer at a later date.
Feature
Multiple time ranges and operation modes. Two types of AC/DC free power supply, high voltage and low voltage. DIN48×48mm full multi-timer. Ecological design with reduced current consumption. Instantaneous output for 0 setting makes sequence checking easy. Acquired UL, CSA, NK, LR. Conforms to EN61812-1. CE mark compatible.Ulasan Produk
