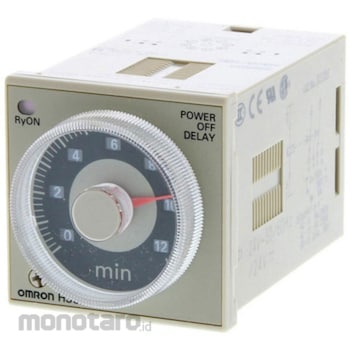

OMRON Solid State Timer
#Grup produk P112446752
Sebelum PPN:
Rp1.699.900 - Rp1.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Humidity to Use (%RH) | 35~85 |
|---|---|
| Control Output | Contact output: AC250V/DC30V 5A, resistive load (cosΦ=1), minimum applicable load: DC5V 10mA (P level, reference value) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Noise resistance | Square wave noise by noise simulator (pulse width 100ns / 1μs rising 1ns) ± 1.5kV (between power supply terminals) |
| Operating Temperature Range (°C) | -10 to 55 (no condensation or freezing) |
| Pin Type | 11 |
| Protection Class | IP40 (panel surface) |
| Static Resistance (kV) | 8 (malfunction), 15 (destruction) |
| Storage Temperature (°C) | -25 to 65 (no condensation or freezing) |
| Storage Temperature Range (°C) | -25~+65 (no freezing) |
| Type of Sign | Recessed mounting / surface mounting |
| Type of Terminal Fitting | Recessed mounting / surface mounting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Since the time unit can be set individually for the on time and off time, a combination of long on or off and short time off or on is possible. Two types of operation modes, flicker on start and flicker off start, are available. Low voltage free ( Realizes AC24-48 / DC12-48V) and high-voltage free (AC100-240V / DC100-125V) power supply24 different time ranges can be selected from 0.05 seconds to 300 hours
0 setting Instant output is possible. Instantly output by turning the scale all the way in the 0 direction, making it easy to check sequence operation, etc.
UL, CSA, NK, LR, CCC acquisition, EN61812-1 compliant. CE mark compatible
