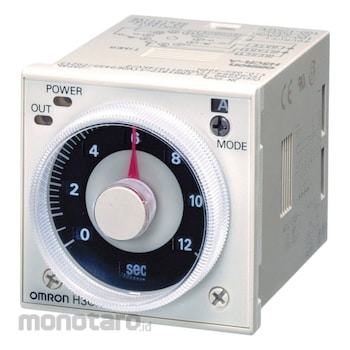

OMRON Solid State Timer
#Grup produk P112446734
Spesifikasi
| AS ONE Part Number | 64-9682-95 |
|---|---|
| Adjustable Time | 0.05s~300h |
| External Connection | 8-pin socket |
| Influence of Voltage | ±0.2% or less (percentage of maximum scale) or less (±0.2% ±10ms or less for 1.2s and 3s ranges) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Operation Mode | A: On-delay, B: Flicker off-start, B2: Flicker on-start, E: Interval, J: One-shot output, Power start |
| Pin Type | 8 |
| Power Supply Voltage (V) | AC100-/DC100- 300H |
| Type | 5 operation multi |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
The number of models in stock has decreased significantly due to the use of two types of AC / DC free power supplies.Ecology design that suppresses current consumption for various applications with 8-operation mode multi (11-pin type) and 5-operation mode multi (8-pin type)
0 Setting Instant output makes sequence check easy. Socket (P3G-08) is attached to shorten the body to 75 mm below the neck (H3CR-A8E AC100-240V / DC100-125V).
PNP input type is also available
UL, CSA, NK, LR, CCC acquisition, EN61812-1 compliant, CE mark compliant
