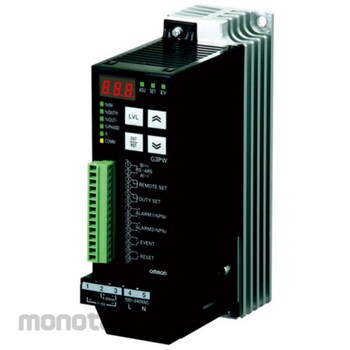

OMRON Single Phase Power Regulator G3PW
#Grup produk P112445939
Sebelum PPN:
Rp6.399.900 - Rp7.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Alarm Output | Number of points: 2 points, open collector output (independent common) Maximum working voltage: 30 V DC Maximum load current: 50 mA Maximum residual voltage: 1.5 V Maximum leakage current: 0.4 mA |
|---|---|
| Ambient Humidity to Use (%RH) | 5~95 |
| Applicable Load | Phase control / linearity (resistance) load, transformer primary side control (magnetic speed density 1.25 or less), optimum cycle control / linearity (resistance) load (transformer primary side control is not possible) |
| Communication Function | None |
| EMC Standard to Conform | (EMI/EMC)EN60947-1, EN60947-4-3 |
| Frequency Fluctuation Range (Hz) | ±3 |
| Insulation Resistance (MΩ) | 100 or more (DC500V insulation resistance meter) |
| Leakage Current (mA) | 10 or less (100/110 VAC), 20 or less (200/220 VAC) |
| Number of Phases | Single-phase |
| Output Voltage | (Adjustment) 0-98% |
| Power Consumption (VA) | 5 or less (between control power supply 4-5) |
| Protection Class | Panel mounting type / closing wall hanging type |
| Rated Voltage (V) | AC100~240 |
| Safety Standard | UL508, CSA C22.2 No.14, EN60947-4-3 (pollution degree 2, overvoltage category II) |
| Shock Resistance (m/s²) | 300 |
| Storage Temperature Range (°C) | -25 to +65 (with no icing or condensation) |
| Time | Soft up / down: 0.0 to 99.9 seconds (initial value / 0.5 seconds) (Possible to use either phase control or optimum cycle control) |
| Type | Power conditioner (200V AC) |
| Type of control | (At analog input) phase control or optimum cycle control (at voltage ON/OFF input) ON/OFF control |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Power regulator functions and performance are improved. Easily realizes high accuracy and multiple functions.It is possible to monitor the set value and output amount by digital display.
Control mode can be selected (phase control / optimum cycle control).
It is possible to monitor the operating time.
The phase control method can be selected.
Supports a wide range of loads (transformer load, alloy heater, pure metal heater, etc.).
Supports UL and CE marking.
